D624

mode: direct drive

Maximum withstand pressure：20bar

Maximum working pressure：0~13bar

PipeSize(G):1/8"~1/4"

Orifice(mm):1.5~4.0

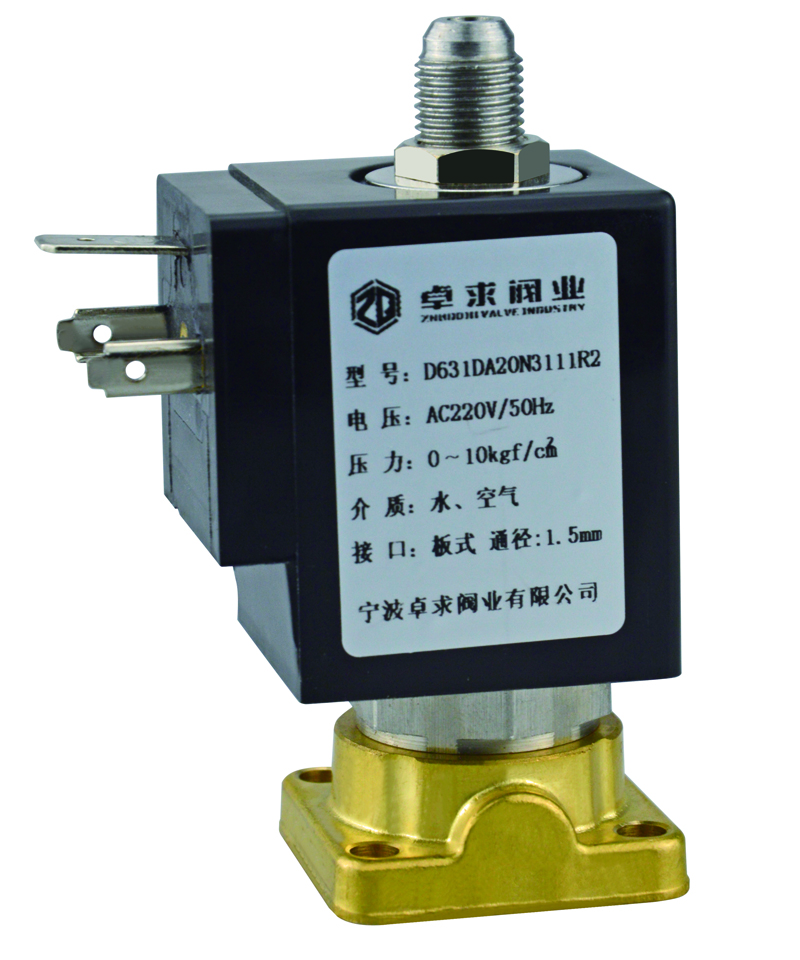

D631

Pipe Size (G): Plate type

Orifice(mm)：1. Valve bady:1.5~2.5 2.TOP:1.5~1.5

D632

Pipe Size (G): Plate type

Orifice(mm)：1. Valve bady:1.5~2.5 2.TOP:1.5~1.5

D634

Pipe Size (G): Plate type

 Orifice(mm)：1. Valve bady:1.5~2.5     2.TOP:1.5~1.5

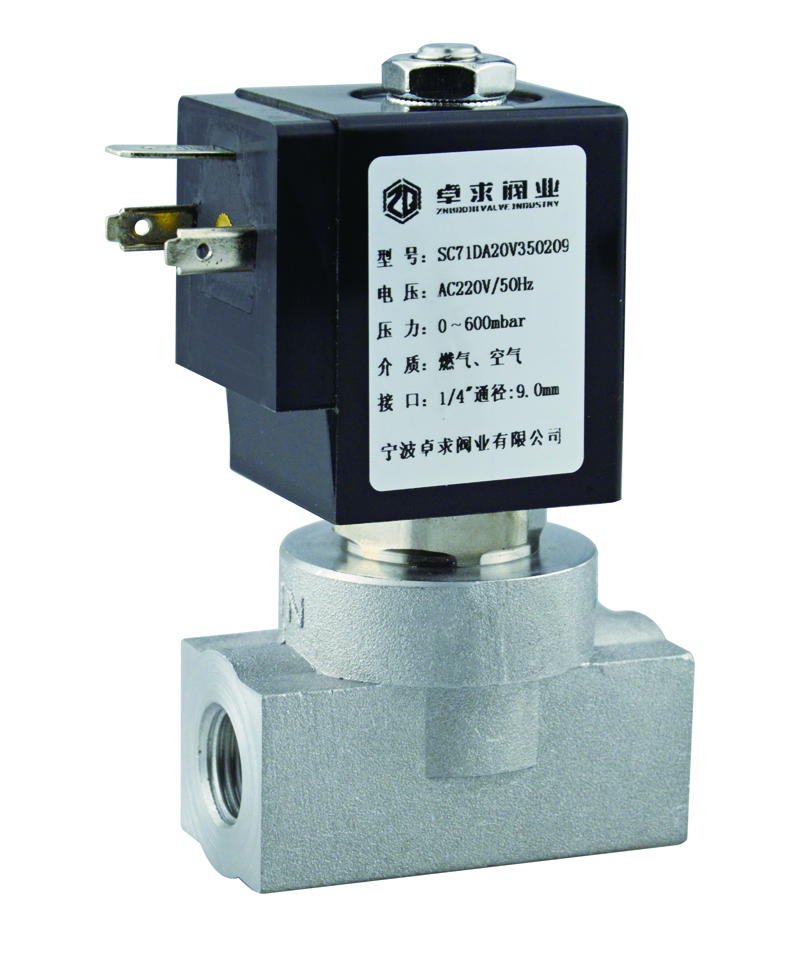

SC71

media: coal gas,nature gas,air and the other normal non-etchant gas

media temp.:<65°C ambiet temp.:0~50°C

voltage: dc12v cJc24vac220v/50hz class: h ed100% voltage tolerance:-10%~+10%

Pipe Size(G):1/4"~2"

Orifice(mm):9~45

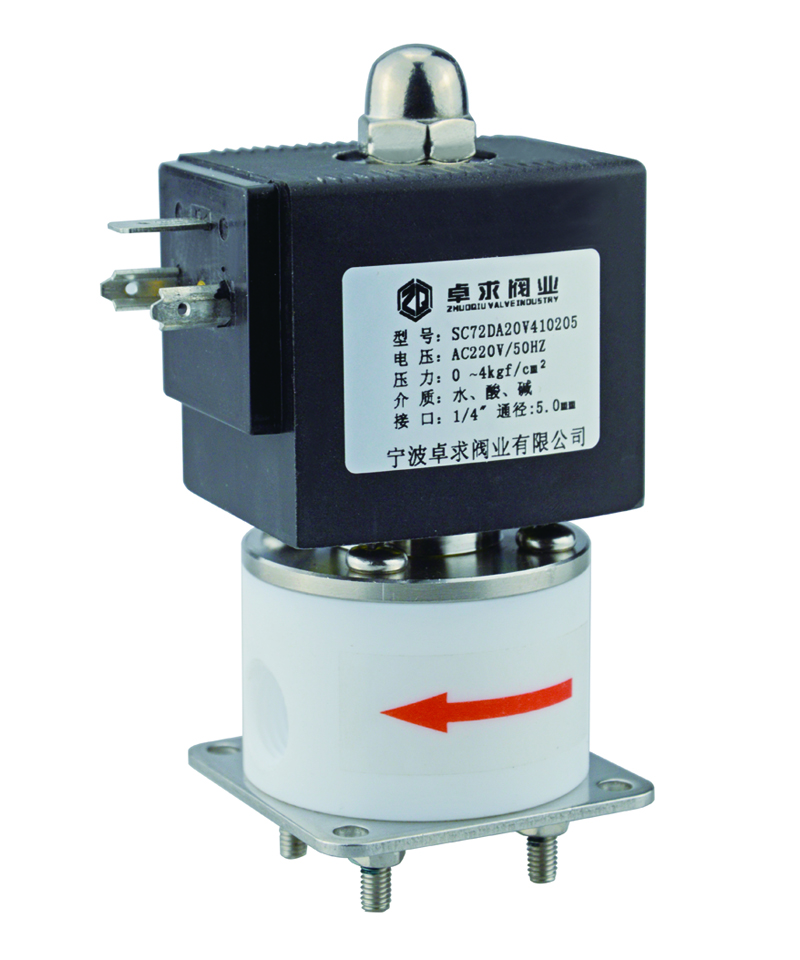

SC72

Body Material: PTFE

Pipe Size(G):1/4"~1"

Orifice(mm):9~45

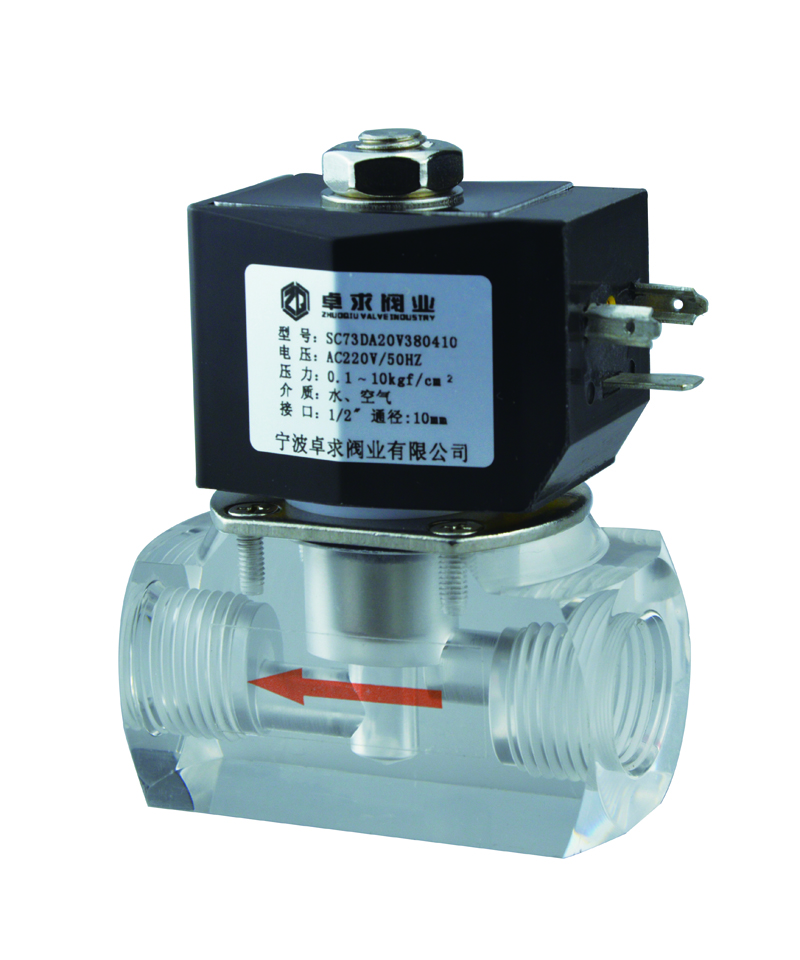

SC73

Body material: stainless steel and Plexiglas (standard), brass (special made)

Voltage: 220VAC/230VAC/240VAC/110VAC/24VAC 50/60HZ 24VDC/12V; Voltage Tolerance: +10% to -10% applicable voltage

Pipe Size(G):1/4"~3/4"

Orifice(mm):6~15

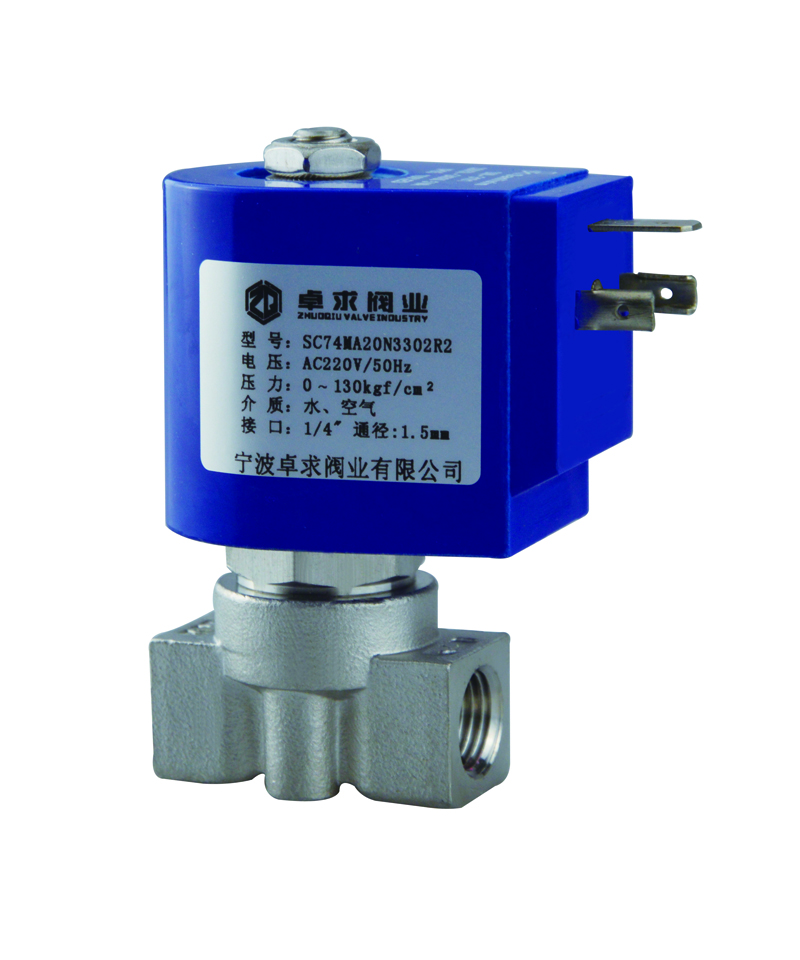

SC74

material: forged brass、SS316

Ambient temp.:0°C^65°C Fluids temp.: CTC～110°C

Pipe Size G:1/8''~1''

Orifice mm :1.0~25

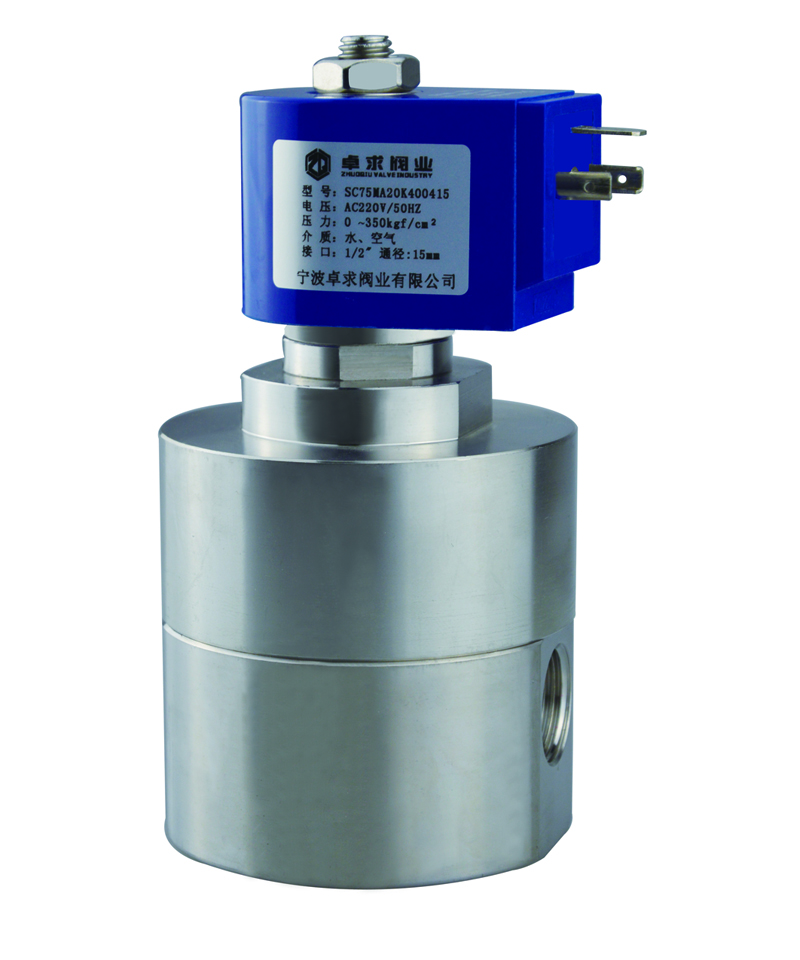

SC75

Body material: Stainless Steel

Ambient temp.:0°C～65°C Fluids temp.: 0°C～110°C

Pipe Size(G):1/8"~1"

Orifice(mm):1.0~25
