Pipe Size G
Orifice
mm
Pressure（bar）
Coil Type
Power

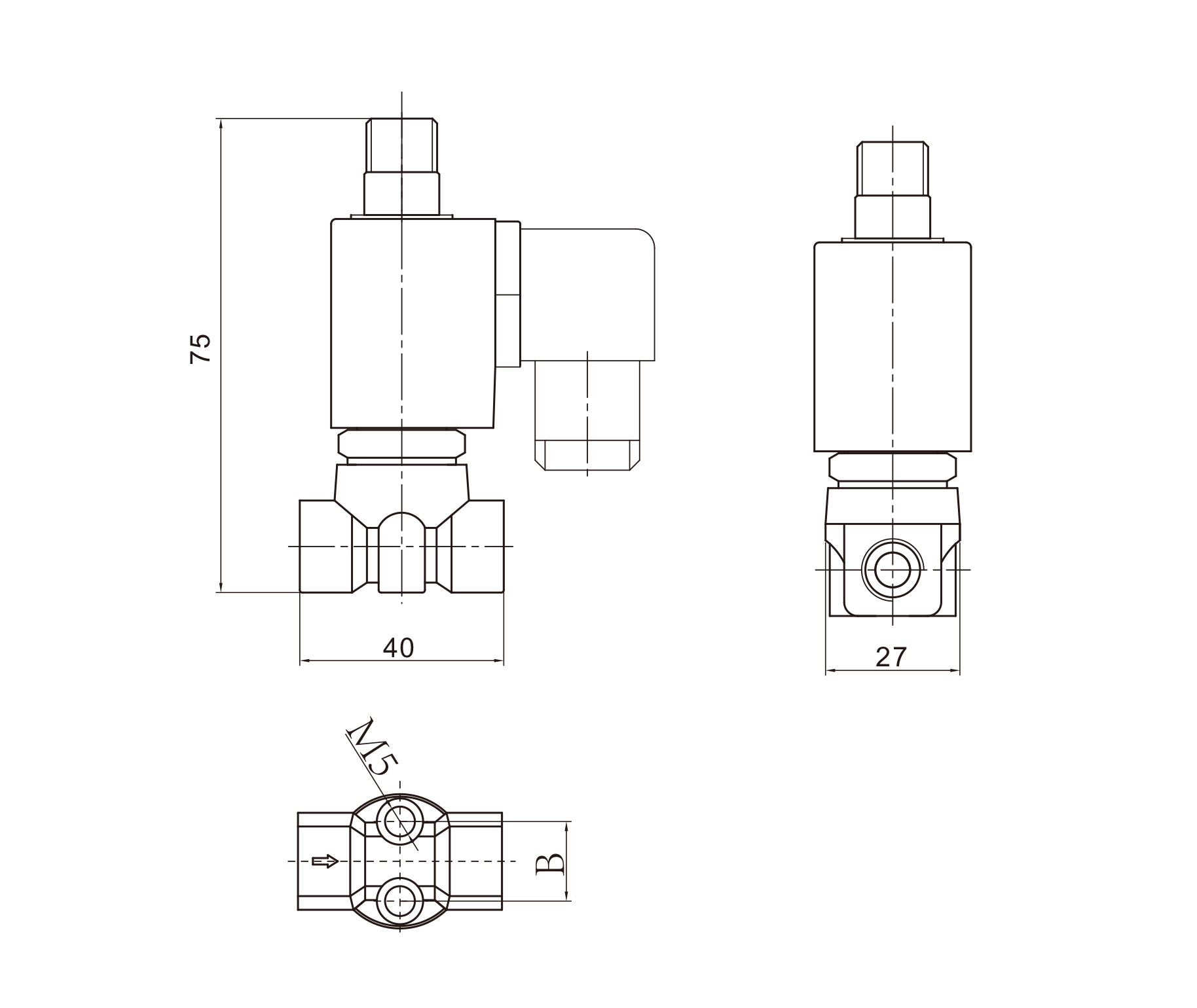

Externsions Dimensions L×W×H
Weight
KG
Model Code 220VAC
50/60HZ
Air
Gas
liquid
To confi gure
AC 220V
DC 24V
Valve bady
TOP
AC
DC
AC
DC
板式
1.5
1.5
0 -10
0-10
0-10
0 - 10
D
22
13
32×32×76
0.28
D632DA20N3111R2
2.0
1.5
0 -7
0-6
0-7
0 - 6
D
22
13
32×32×76
0.28
D632DA20N311102
2.5
1.5
0 -5
0-4
0-5
0 - 4
D
22
13
32×32×76
0.28
D632DA20N3111R3
|
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
|
|
D63 |
Coil Types |
Voltage |
Seal Material |
Body Material |
Pipe Size |
Orifice |
Options |
|
|
D |
631 |
D |
A20 |
N |
31 |
11 |
02 |
SHAPE \* MERGEFORMAT |
|
D= 3/2-Way Direct Acting |

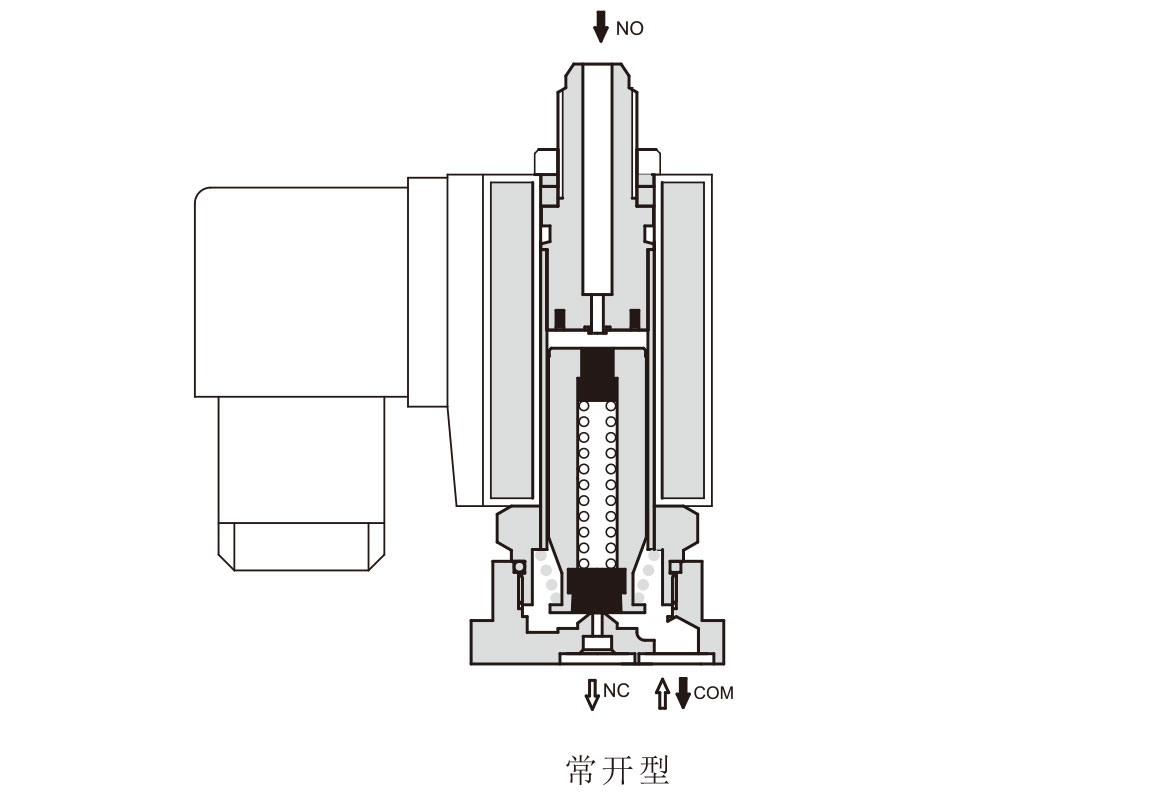

631= Normally Closed 632= Normally Open 634= Universal |
D= Plastic molding coil
N= Lead plastic forming coil |
A24=AC24V A36=AC36V A48=AC48V A10=AC110V A20=AC220V D12=DC12V D24=DC24V D36=DC36V |
N=NBR V=VITON E=EPDM |
31=Forged brass |
11= Plate combination type |
02=2.0 R2=1.5 R3=2.5 |
L=Neon Lamp N=NPT Thread |
