SC75

Special solenoid valve

Characteristics
1. 2/2-way Super High Pressure Solenoid Valve, closed when de-energized, open when energized.
2. The product is special design, power will be normal type 1/4,low temperature,small in size,large flow rate,widely use.
3. Body material: Stainless Steel
4. Ambient temp.:0°C～65°C Fluids temp.: 0°C～110°C
5. Flow as the arrow,mounts in any position;Best position is solenoid and upright direction.
6. Voltage:AC 220V/230V/110V DC 24V Voltage Tolerance:+10% to -10% applicable voltage
7 seal material is PTFE (PEEK), 8mm ( Viton)
8. It is normal for solenoid valve to have micro leakage under 20 bar pressure

Down PDF

  • Model specification

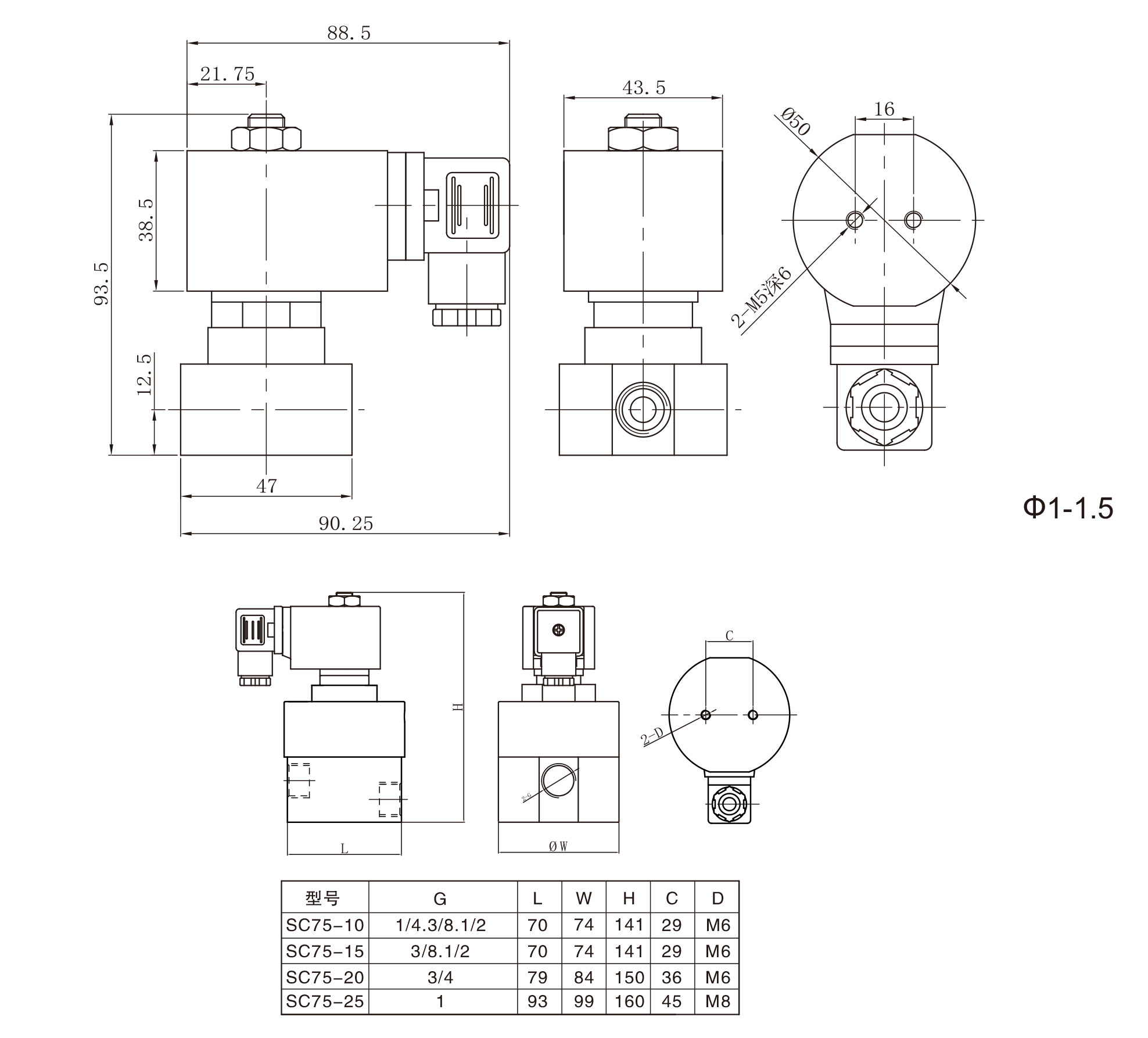

  • Product structure







Pipe Size G







Orifice mm







CV

rate



Pressure（bar）



Coil Type



Power







Externsions Dimensions L×W×H





Weight

KG







Model Code 220VAC 50/60HZ

Air Gas

liquid



To confi gure



AC 220V



DC 24V

AC

DC

AC

DC



1/8”

1.0

0.04

0-350

0 -250

0-350

0 -250

M

7

9

47×50×93.5

0.8

SC75MA20K400101

1.2

0.08

0-300

0 -230

0-300

0 -230

M

7

9

47×50×93.5

0.8

SC75MA20K4001R1

1.5

0.14

0-250

0 -180

0-250

0 -180

M

7

9

47×50×93.5

0.8

SC74MA20K4001R2



1/4”

1.0

0.04

0-350

0 -250

0-350

0 -250

M

7

9

47×50×93.5

0.8

SC75MA20K400201

1.2

0.08

0-300

0 -230

0-300

0 -230

M

7

9

47×50×93.5

0.8

SC75MA20K4002R1

1.5

0.14

0-250

0 -180

0-250

0 -180

M

7

9

47×50×93.5

0.8

SC75MA20K4002R2

1/4”

8.0

1.0

0-110

0-90

0-110

0-90

M

7

9

55×59×102

1.16

SC75MA20V400208

3/8”

8.0

1.0

0-110

0-90

0-110

0-90

M

7

9

55×59×102

1.16

SC75MA20V400308

1/2”

8.0

1.0

0-110

0-90

0-110

0-90

M

7

9

55×59×102

1.16

SC75MA20V400408

1/4”

10

2.1

0-350

0 -300

0-350

0 -300

M

7

9

70×74×140

3.0

SC75MA20K400210



3/8”

10

2.1

0-350

0 -300

0-350

0 -300

M

7

9

70×74×140

3.0

SC75MA20K400310

15

3.5

0-350

0 -300

0-350

0 -300

M

7

9

70×74×140

2.6

SC75MA20K400315



1/2”

10

2.1

0-350

0 -300

0-350

0 -300

M

7

9

70×74×140

3.0

SC75MA20K400410

15

3.5

0-350

0 -300

0-350

0 -300

M

7

9

70×74×140

2.6

SC75MA20K400415

3/4”

20

7

0-300

0 -230

0-300

0 -230

M

7

9

79×84×150

3.6

SC75MA20K400520

1”

25

11

0-300

0 -230

0-300

0 -230

M

7

9

93×99×160

5.3

SC75MA20K400625


1

2

3

4

5

6

7

8

Sc75

Coil Types

Voltage

Seal Material

Body Material

Pipe Size

Orifice

Options

S

C

75

M

A20

K

40

01

01

N



S=

Special valve



C=

Normally Closed



75= High Pressure Solenoid Valve



M=

Low power coil



（Surge junction box）



A10=AC110V A20=AC220V D12=DC12V D24=DC24V



8mm (VITOM) K=PEEK



40=SS316



01=1/8

02=1/4''

03=3/8''

04=1/2''

05=3/4''

06=1''



01=1.0

08-8.0

10=10

15=15

20=20

25=25

R1=1.2 R2=1.5



L=Neon Lamp N=NPT

Thread
