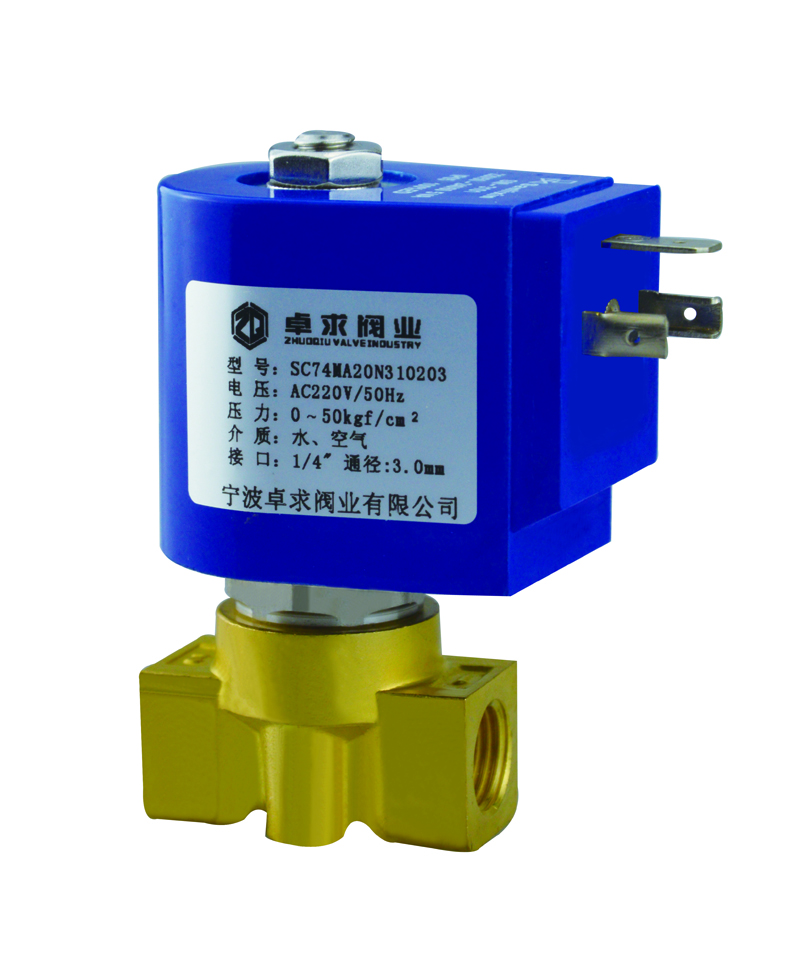

Special solenoid valve

Characteristics

1.2/2-way normally closed direct acting solenoid valve, closed when de-energized,open when energized.

2.The product is special design, power will be normal type 1/4,material: forged brass、SS316
3.Ambient temp.:0°C^65°C Fluids temp.: CTC～110°C
4.Body low temperature,small in size,large flow rate, widely use.
5. Flow as the arrow,mounts in any position; Best position is solenoid vertical and upright direction.
6. Voltage:AC 220V/230V/110V DC 24V
Voltage Tolerance:+10% to-10% applicable voltage 7. This series valve are offered NBR、VITON、EPDM etc for seals and diaphragm to provide on-off various fluids

Down PDF

Model specification

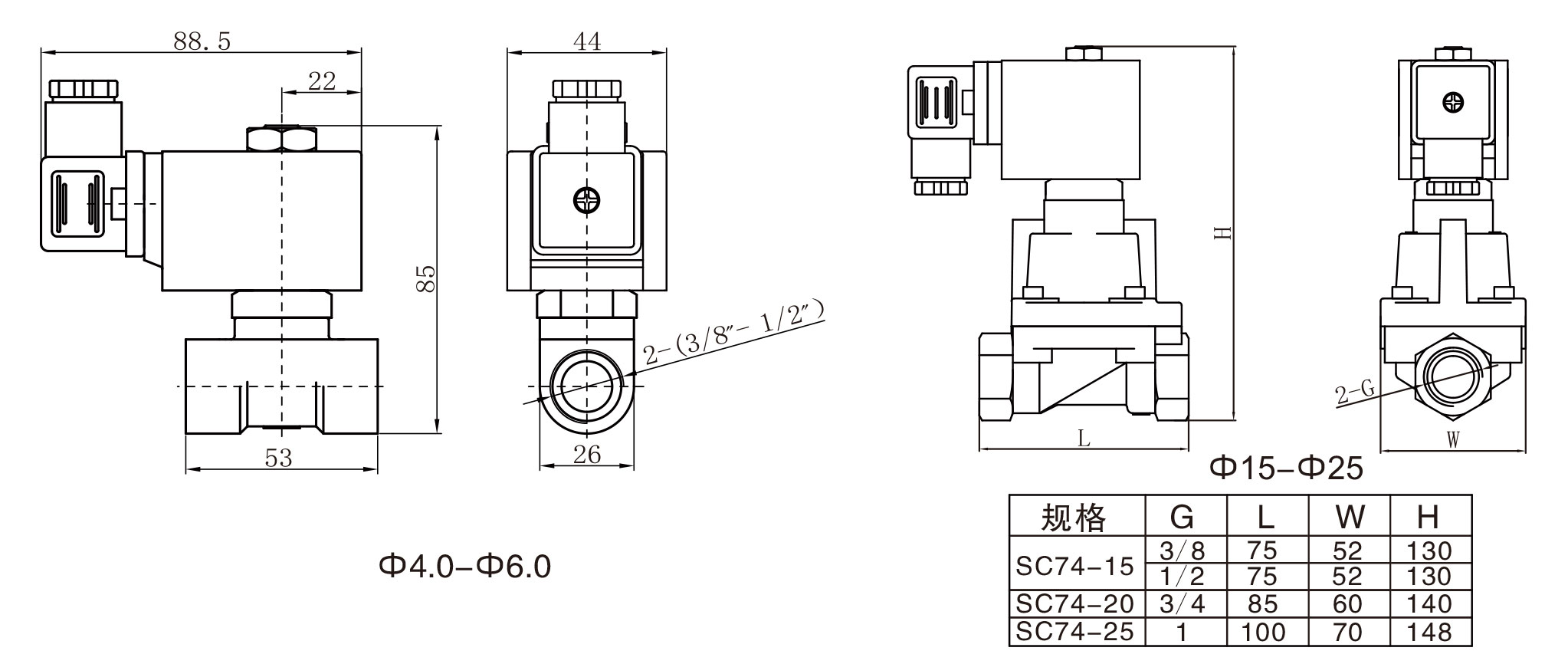

Product structure

Pipe Size G	Orifice mm	CV rate	Pressure（bar）				Coil Type	Power		Externsions Dimensions L×W×H	Weight KG	Model Code 220VAC 50/60HZ
			Air Gas		liquid		To confi gure	AC 220V	DC 24V
			AC	DC	AC	DC	To confi gure	AC 220V	DC 24V
1 / 8	1.0	0.04	0-150	0 -150	0-150	0 -150	M	4.5	7	40×27×80	0.48	SC74MA20N330101
	1.5	0.08	0-130	0 -130	0-130	0 -130	M	4.5	7	40×27×80	0.48	SC74MA20N3301R2
	” 2.0	0.14	0-120	0 -100	0-120	0 -100	M	4.5	7	40×27×80	0.48	SC74MA20N330102
	2.5	0.23	0-80	0 -80	0-80	0 -80	M	4.5	7	40×27×80	0.48	SC74MA20N3301R3
	3.0	0.25	0-50	0 -50	0-50	0 -50	M	4.5	7	40×27×80	0.48	SC74MA20N330103
1/4”	1.0	0.04	0-150	0 -150	0-150	0 -150	M	4.5	7	40×27×80	0.47	SC74MA20N330201
	1.5	0.08	0-130	0 -130	0-130	0 -130	M	4.5	7	40×27×80	0.47	SC74MA20N3302R2
	2.0	0.14	0-120	0 -100	0-120	0 -100	M	4.5	7	40×27×80	0.47	SC74MA20N330202
	2.5	0.23	0-80	0 -80	0-80	0 -80	M	4.5	7	40×27×80	0.47	SC74MA20N3302R3
	3.0	0.25	0-50	0 -50	0-50	0 -50	M	4.5	7	40×27×80	0.47	SC74MA20N330203
1 / 8”	4.0	0.6	0-40	0 -30	0-40	0 -30	M	7	9	43.5×30×80	0.5	SC74MA20N330104
	5.0	0.65	0-23	0 -15	0-23	0 -15	M	7	9	43.5×30×80	0.5	SC74MA20N330105
	6.0	0.8	0-15	0 -11	0-15	0 -11	M	7	9	43.5×30×80	0.5	SC74MA20N330106
1 / 4”	4.0	0.6	0-40	0 -30	0-40	0 -30	M	7	9	43.5×30×80	0.48	SC74MA20N330204
	5.0	0.65	0-23	0 -15	0-23	0 -15	M	7	9	43.5×30×80	0.48	SC74MA20N330205
	6.0	0.8	0-15	0 -11	0-15	0 -11	M	7	9	43.5×30×80	0.48	SC74MA20N330206
3 / 8”	4.0	0.6	0-40	0-30	0-40	0-30	M	7	9	53×26×85	0.58	SC74MA20N310304
	5.0	0.65	0-23	0-15	0-23	0-15	M	7	9	53×26×85	0.58	SC74MA20N310305
	6.0	0.8	0-15	0-11	0-15	0-11	M	7	9	53×26×85	0.58	SC74MA20N310306
1 / 2”	4.0	0.6	0-40	0-30	0-40	0-30	M	7	9	53×26×85	0.58	SC74MA20N310404
	5.0	0.65	0-23	0-15	0-23	0-15	M	7	9	53×26×85	0.58	SC74MA20N310405
	6.0	0.8	0-15	0-11	0-15	0-11	M	7	9	53×26×85	0.58	SC74MA20N310406
3 / 8”	15	4.2	0-100	0-100	0-100	0-100	M	4.5	7	75×52×130	1.35	SC74MA20N310315

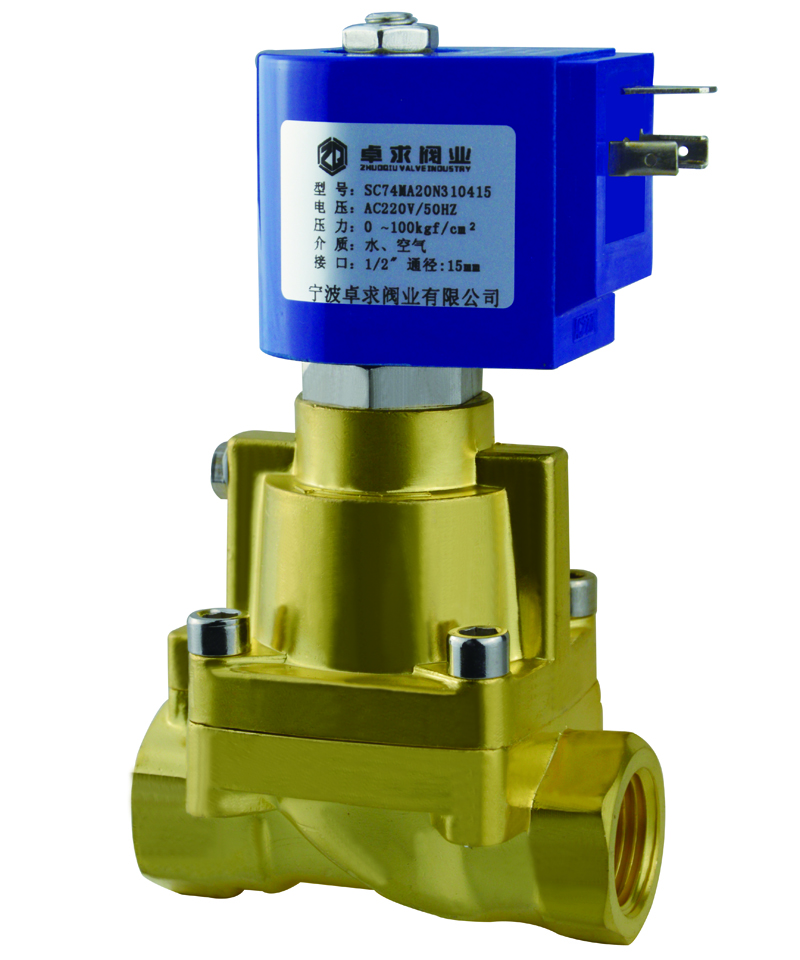

1 / 2”	15	4.2	0-100	0-100	0-100	0-100	M	4.5	7	75×52×130	1.25	SC74MA20N310415
3 / 4”	20	7	0-80	0-80	0-80	0-80	M	4.5	7	85×60×140	1.55	SC74MA20N310520
1”	25	11	0-60	0-60	0-60	0-60	M	4.5	7	100×72×148	2.3	SC74MA20N310625

1			2	3	4	5	6	7	8
Sc74			Coil Types	Voltage	Seal Material	Body Material	Pipe Size	Orifice	Options
S	C	74	M	A20	N	31	01	01	N
S= Special valve	C= Normally Closed	74= High Pressure Solenoid Valve	M= Low power coil （Surge	A10=AC110V A20=AC220V D12=DC12V D24=DC24V A24=AC24V	N=NBR E=EPDM V=VITON	31=Forged brass 32=SS304 33=SS316	01=1/8 02=1/4” 03=3/8”	01=1.0 02=2.0 03=3.0	L=Neon Lamp N=NPT Thread
			junction box）				04=1/2”	04=4.0
							05=3/4”	05=5.0
							06=1”	06=6.0
								15=15
								20=20
								25=25
								R2=1.5
								R3=2.5
