DQ82

2/2way high temperature electric flangeBall Valves

Product overview

2-way electric high temperature ball valve seat, the seal is made of high temperature special PPL replace of TEFLON, use of special processing technology,Has a better high temperature resistance, thermal stability, corrosion resistance and have self lubricating. 2-way electric high temperature ball valve life 3 5 times that of conventional 2-way ball valve.Medium: water, steam, thermal oil, acids, etc. Medium temperature: -20 °C 200 °C.

Product characteristic

1.Applicable for a big pressure difference in the pipe strict sealing of the switch and cut off the pipeline high temperature medium process and the high temperature fluid flow control system.
2.Applicable for different kinds of fluid medium and realize 2-way flow.
3.Fluid resistance small, ball valve is the smallest of all valve fluid resistance classo
4.The seat sealing performance is good, use PPL as sealing ring, structure is easy to close seal and ball valve sealing ability increases as the pressure medium.
5.Bottoms type valve stem and the head of valve stem head is special design, such as fire stem seal damage, the valve stem Convex sets and the body can also be formed between the metal contact, to ensure that the valve stem seal.

Down PDF

  • Model specification
  • Product structure







Size







Orifice mm







CV

Facto

Operating Pressure Differential（bar）

Fluids Temp.

Actuator









L×W×H





Weight KG





Model Code 220VAC

50/60HZ

Neutral gas, neutral liquids Petrochemical products, corrosive medium



℃



Voltage AC



Torque N·M



DN15



15



4.5



0 -16



-20-200



220V



50



130×95×216

6.5

DQ82CA20P321015

8.0

DQ82CA20P321015K



DN20



20



7.5



0 -16



-20-200



220V



50



130×105×222

7.5

DQ82CA20P321020

9.0

DQ82CA20P321020K



DN25



25



12



0 -16



-20-200



220V



50



140×115×232

8.5

DQ82CA20P321025

10

DQ82CA20P321025K



DN35



35



24



0 -16



-20-200



220V



80



165×140×255

10

DQ82CA20P321035

12

DQ82CA20P321035K



DN40



40



29



0 -16



-20-200



220V



100



165×150×268

13

DQ82CA20P321040

15

DQ82CA20P321040K



DN50



50



48



0 -16



-20-200



220V



150



203×165×285

16

DQ82CA20P321050

18

DQ82CA20P321050K



DN65



65



52



0 -16



-20-200



220V



300



241×185×340

28

DQ82CA20P321065

30

DQ82CA20P321065K



DN80



80



80



0 -16



-20-200



220V



400



283×200×367

31

DQ82CA20P321080

33

DQ82CA20P321080K



DN100



100



128



0 -16



-20-200



220V



600



305×235×394

44

DQ82CA20P3210100

46

DQ82CA20P3210100K



DN125



125



165



0 -16



-20-200



220V



1600



381×270×626

112

DQ82CA20P3210125

114

DQ82CA20P3210125K



DN150



150



215



0 -16



-20-200



220V



1600



403×300×644

126

DQ82CA20P3210150

128

DQ82CA20P3210150K

DN200

200

300

0 -16

-20-200

220V

2000

502×360×696

170

DQ82CA20P3210200

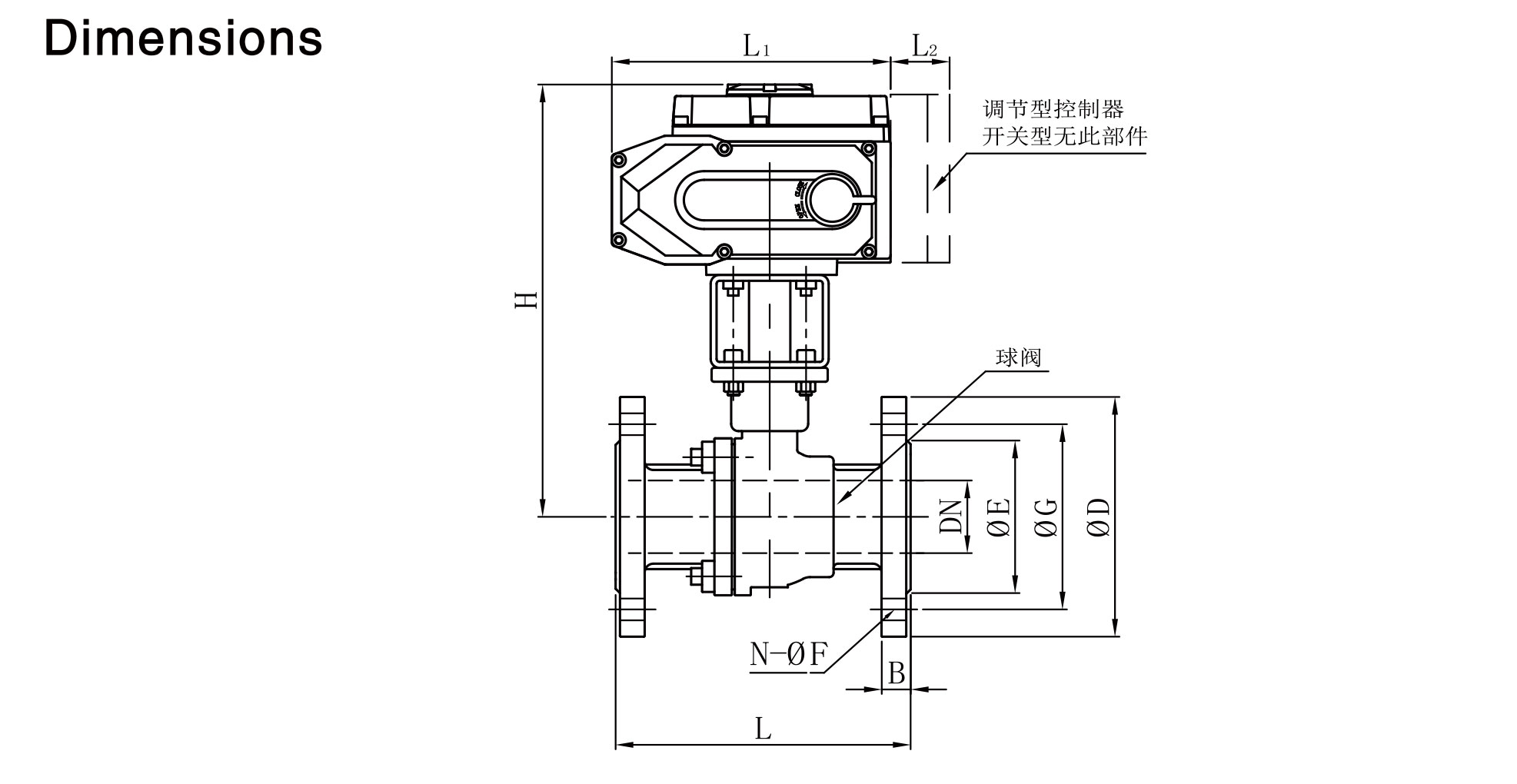

DN(mm)

SIZE （mm）



Mode code AC220V

L

D

G

E

B

N-F

H

L1

L2

15

130

95

65

46

14

4-14

216

160



DQ-005

40

DQ-005K

20

130

105

75

56

16

4-14

222

160



DQ-005

40

DQ-005K

25

140

115

85

65

16

4-14

232

160



DQ-005

40

DQ-005K

32

165

140

100

76

18

4-18

255

160



DQ-008

40

DQ-008K

40

165

150

110

84

18

4-18

268

189



DQ-010

40

DQ-010P

50

203

165

125

99

20

4-18

285

189



DQ-015

40

DQ-015K

65

241

185

145

118

22

4-18

340

268



DQ-030

40

DQ-030K

80

283

200

160

132

24

8-18

367

268



DQ-040

40

DQ-040K

100

305

235

190

156

24

8-22

394

268



DQ-060

40

DQ-060K

125

381

270

220

184

26

8-26

626

508



DQ-160

40

DQ-160K

150

403

300

250

211

28

8-26

644

508



DQ-160

40

DQ-160K

200

502

360

310

274

30

12-26

696

508



DQ-200

40

DQ-200K
