SC76

SC76

Special solenoid valve

Characteristics
1. This series valve is famous for sensitive reaction and high pressure.
2. Usually be used to circuit control board connection, ifs good forenergy saving.
3. Widely used to 1C card gas combustion meter, water saving irrigation, water meter and various automatism sanitation.
4. The core of the valve can be pulled and stretched to be the good shape, with good strictness, credibility, sensitive reaction and long life-spen.
5. Voltage:DC6V/DC12V/DC24V
6. Seals:NBR,VITON,EPDM
7. Valve body:Brss ss304
8. Pulse:Wid+h:50~80ms
Using Condition
Fluid Media: Water, Gas( but not corrosive)
Fluids Temp.:≤ 6CTC,Pis use at the area which relative Temp, can not over then 85%

Down PDF

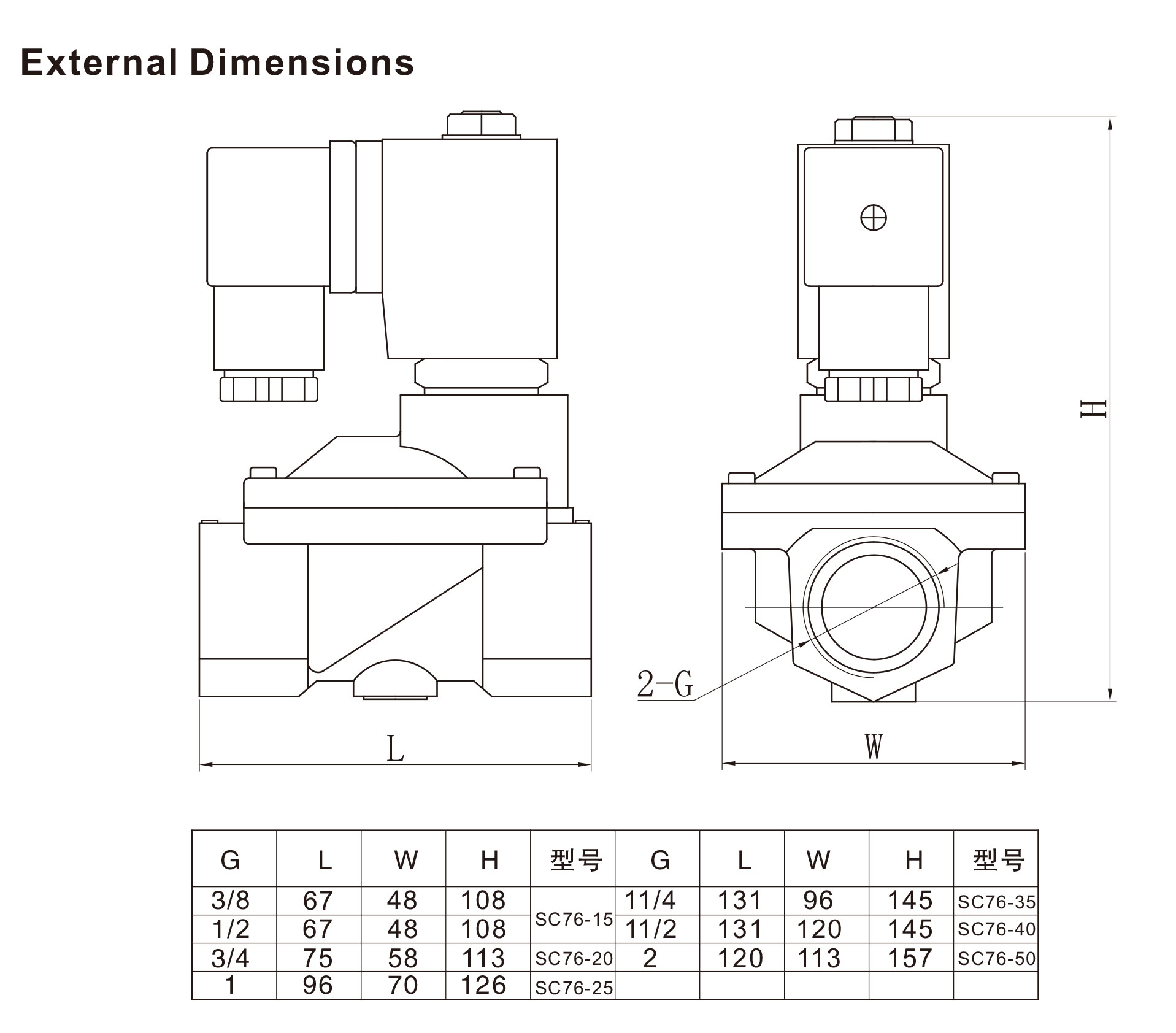

Model specification
Product structure

Pipe Size G	Orifice mm	CV rate	Pressure（bar）		Coil Type	Power		Externsions Dimensions L×W×H	Weight KG	Model Code 220VAC 50/60HZ
			Air Gas	liquid	To confi gure	DC 12V	DC 24V
			DC		To confi gure	DC 12V	DC 24V
3 / 8”	15	4.2	0.5-16		Z	12	12	67×48×108	0.8	SC76ZD12N310315
1 / 2”	15	4.5	0.5-16		Z	12	12	67×48×108	0.7	SC76ZD12N310415
3/ 4”	20	7.5	0.5-16		Z	12	12	75×58×113	0.9	SC76ZD12N310520
1”	25	12	0.5-16		Z	12	12	96×70×126	0.9	SC76ZD12N310625
11/4”	35	22	0.5-16		Z	12	12	131×96×145	2.8	SC76ZD12N310735
11/2”	40	30	0.5-16		Z	12	12	131×96×145	2.7	SC76ZD12N310840
2”	50	45	0.5-16		Z	12	12	165×120×157	4.0	SC76ZD12N310950

1			2	3	4	5	6	7	8
Sc76			Coil Types	Voltage	Seal Material	Body Material	Pipe Size	Orifice	Options
S	C	76	Z	D24	N	31	04	15	L
S= Special valve	C= Normally Closed	76= Latching Solenoid valve	Z= Latching	D06=DC6V D12=DC12V D24=DC24V	N=NBR V=VITON E=EPDM	31=Brass 33=SS316	03=3/8'' 04=1/2'' 05=3/4” 06=1” 07=11/4” 08=11/2” 09=2” 10= Flange connection	15=15 20=20 25=25 35=35 40=40 50=50	L=Neon Lamp N=NPT Thread
