2/2 way Direct Acting solenoid valve

1、2/2-way Direct Acting、Open when energized，closed when de-energized
2、Automatic control of neutral gases and liquids
3、Small volume, large flow, simple structure
4、High pressure,quick response
Control：Direct Acting
Body Material：Brass、Stainless steel 304(316 can be customized)
Maximum Pressure Resistance：250bar Maximum
Work Pressure：150bar
Ambient Temperature：0℃~65℃
Install：Flow as the arrow,Horizontal installation
Standard Voltage：AC：220V/50HZ 240/60HZ，
AC110V,DC24V, 12V……
Voltage fluctuations：+10%~-10% Medium：neutral gases and liquids
Protection Level：IP65 100%ED Medium Temperature： NBR ( -10~+80℃)
Seal：NBR(N)、EPDM(E)、VITON(V) EPDM (-30~+130℃)
Electrical connection: Standard Connections（PG11) VITON (-20~+150℃)
Lead Wires（Optional） PTFE(-40~+180℃)
Medium viscosity：20cs

Down PDF

Model specification

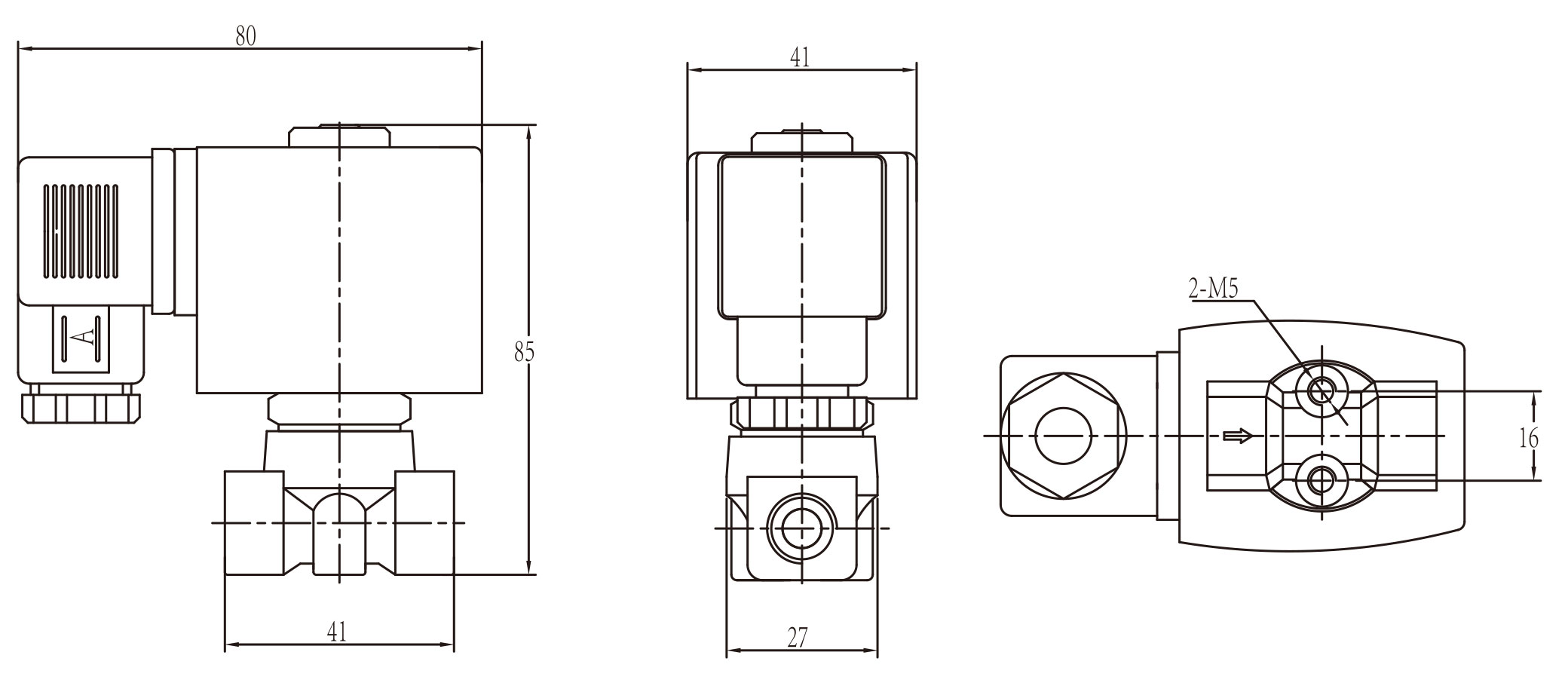

Product structure

Pipe Size G	Orifice mm	CV rate	Pressure（bar）				Coil Type	Power		Externsions Dimensions L×W×H	Weight KG	Model Code 220VAC 50/60HZ
							To confi gure	AC 220V	DC 24V
			AC	DC	AC	DC	To confi gure	AC 220V	DC 24V
1/8”	1.0	0.04	0-150	0-100	0-150	0-100	D	19	17	41×27×85	0.46	AC15DA20N310101
	1.2	0.05	0-150	0-100	0-150	0-100	D	19	17	41×27×85	0.46	AC15DA20N3101R1
	1.5	0.08	0-130	0-86	0-130	0-86	D	19	17	41×27×85	0.46	AC15DA20N3101R2
	2.0	0.14	0-90	0-60	0-90	0-60	D	19	17	41×27×85	0.46	AC15DA20N310102
	2.5	0.23	0-60	0-40	0-60	0-40	D	19	17	41×27×85	0.46	AC15DA20N3101R3
	3.0	0.25	0-30	0-20	0-30	0-20	D	19	17	41×27×85	0.46	AC15DA20N310103
1/4”	1.0	0.04	0-150	0-100	0-150	0-100	D	22	13	41×27×85	0.45	AC15DA20N310201
	1.2	0.05	0-150	0-100	0-150	0-100	D	22	13	41×27×85	0.45	AC15DA20N3102R1
	1.5	0.08	0-130	0-86	0-130	0-86	D	22	13	41×27×85	0.45	AC15DA20N3102R2
	2.0	0.14	0-90	0-60	0-90	0-60	D	22	13	41×27×85	0.45	AC15DA20N310202
	2.5	0.23	0-60	0-40	0-60	0-40	D	22	13	41×27×85	0.45	AC15DA20N3102R3
	3.0	0.25	0-30	0-20	0-30	0-20	D	22	13	41×27×85	0.45	AC15DA20N310203

1			2	3	4	5	6	7	8
Ac15			Coil Types	Voltage	Seal Material	Body Material	Pipe Size	Orifice	Options
A	C	15	D	A20	N	31	01	01
A: Direct Acting	C： Normally Closed	15: Series	D=Din Standard Connections,	A24=AC24V A36=AC36V	N=NBR	31=Forged Brass 32=304	01=1/8'' 02=1/4''	01=1.0 02=2.0	L=Neon Lamp J=External cooling module D=Timer N=NPT Other threads can be customized
			Fully Encapsulated	A48=AC48V A10=AC110V	V=VITON			03=3.0
			M=Low Power	A20=AC220V D12=DC12V	E=EPDM			R1=1.2 R2=1.5
				D24=DC24V				R3=2.5
				D36=DC36V
