先导式二通电磁阀 CO43
|
接管尺寸 G |
流量通径mm |
流量系数CV |
流体压力范围（bar） |
线圈 |
功率 |
外形尺寸长×宽×高L×W×H |
重量KG |
订货型号 以下表中电压为220VAC 50/60HZ |
||||
|
气体 |
液体 |
配置 |
AC 220V |
DC 24V |
||||||||
|
AC |
DC |
AC |
DC |
|||||||||
|
3/8” |
15 |
4.5 |
0.5-13 |
0.5 -13 |
0.5 -13 |
0.5 -13 |
D |
20 |
20 |
66×48×124 |
0.9 |
CO43DA20N310315 |
|
15 |
4.5 |
0.5-13 |
0.5 -13 |
0.5 -13 |
0.5 -13 |
D |
20 |
20 |
66×48×124 |
0.95 |
CO43DA20N330315 |
|
|
1/2” |
15 |
4.5 |
0.5-13 |
0.5 -13 |
0.5 -13 |
0.5 -13 |
D |
20 |
20 |
66×48×124 |
0.9 |

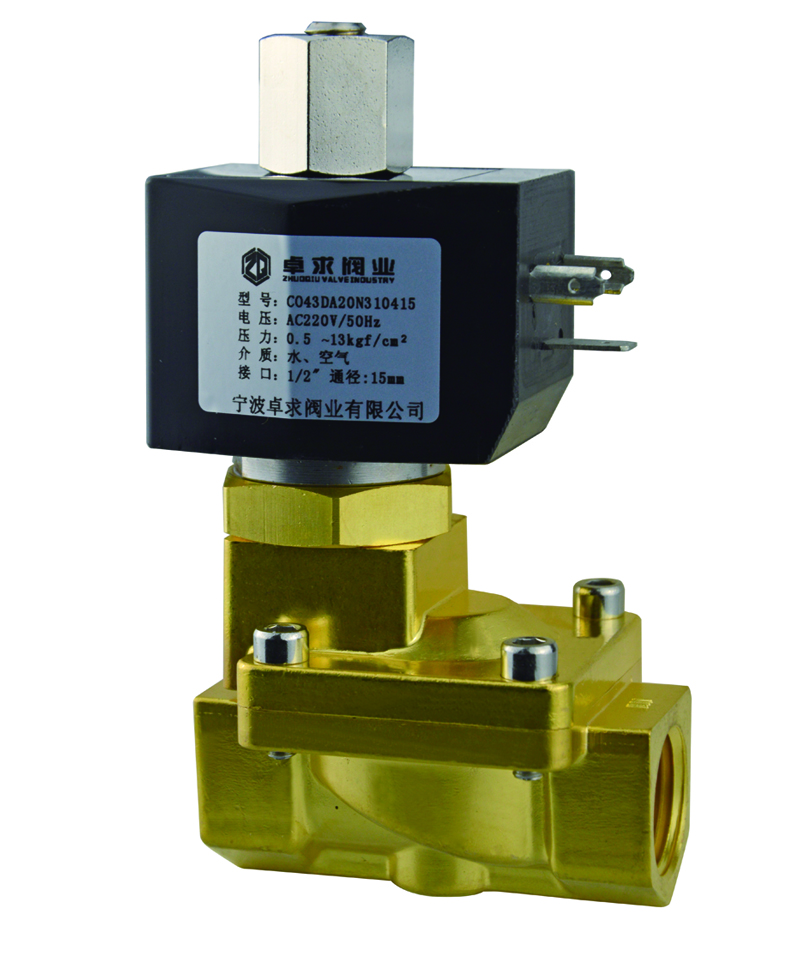

CO43DA20N310415 |
|
15 |
4.5 |
0.5-13 |
0.5 -13 |
0.5 -13 |
0.5 -13 |
D |
20 |
20 |
66×48×124 |
0.9 |
CO43DA20N330415 |
|
|
3/4” |
20 |
7.6 |
0.5-13 |
0.5 -13 |
0.5 -13 |
0.5 -13 |
D |
20 |
20 |
75×58×130 |
1.1 |
CO43DA20N310520 |
|
20 |
7.6 |
0.5-13 |
0.5 -13 |
0.5 -13 |
0.5 -13 |
D |
20 |
20 |
75×58×130 |
1.1 |
CO43DA20N330520 |
|
|
1” |
25 |
12 |
0.5-13 |
0.5 -13 |
0.5 -13 |
0.5 -13 |
D |
20 |
20 |
96×70×143 |
1.6 |
CO43DA20N310625 |
|
25 |
12 |
0.5-13 |
0.5 -13 |
0.5 -13 |
0.5 -13 |
D |
20 |
20 |
96×70×143 |
1.5 |
CO43DA20N330625 |
|
|
1 1/4” |
35 |
22 |
0.5 - 8 |
0.5 -8 |
0.5 -8 |
0.5 -8 |
D |
20 |
20 |
131×96×162 |
3 |
CO43DA20N310735 |
|
35 |
22 |
0.5 - 8 |
0.5 -8 |
0.5 -8 |
0.5 -8 |
D |
20 |
20 |
131×96×162 |
2.8 |
CO43DA20N330735 |
|
|
1 1/2” |
40 |
30 |
0.5 - 8 |
0.5 -8 |
0.5 -8 |
0.5 -8 |
D |
20 |
20 |
131×96×162 |
2.8 |
CO43DA20N310840 |
|
40 |
30 |
0.5 - 8 |
0.5 -8 |
0.5 -8 |
0.5 -8 |
D |
20 |
20 |
131×96×162 |
2.7 |
CO43DA20N330840 |
|
|
2” |
50 |
48 |
0.5 - 8 |
0.5 -8 |
0.5 -8 |
0.5 -8 |
D |
20 |
20 |
165×120×174 |
4.2 |
CO43DA20N310950 |
|
50 |
48 |
0.5 - 8 |
0.5 -8 |
0.5 -8 |
0.5 -8 |
D |
20 |
20 |
165×120×174 |
4.6 |
CO43DA20N330950 |
|
|

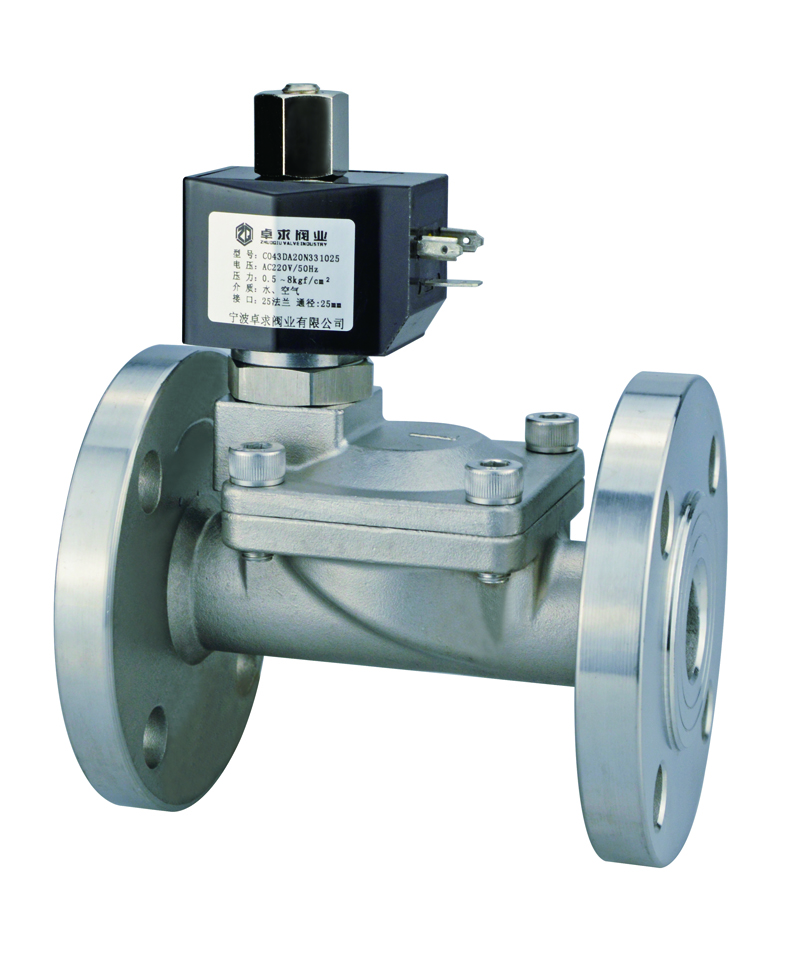

法兰连接 |
25 |
12 |
0.5 - 8 |
0.5 -8 |
0.5 -8 |
0.5 -8 |
D |
20 |
20 |
134×110×172 |
2.9 |
CO43DA20N331025 |
|
35 |
22 |
0.5 - 8 |
0.5 -8 |
0.5 -8 |
0.5 -8 |
D |
20 |
20 |
160×135×187 |
5.2 |
CO43DA20N331035 |
|
|
40 |
30 |
0.5 - 8 |
0.5 -8 |
0.5 -8 |
0.5 -8 |
D |
20 |
20 |
160×145×192 |
5.5 |
CO43DA20N331040 |
|
|
|
50 |
48 |
0.5 - 8 |
0.5 -8 |
0.5 -8 |
0.5 -8 |
D |
20 |
20 |
200×160×219 |
8.1 |
CO43DA20N331050 |
|
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
||
|
CO43型 |
线圈类型 |
电压 |
密封材 料 |
阀体材质类型 |
连接方式 |
流量通径 |
其它选配 |
||
|
C |
O |
43 |
D |
A20 |
N |
31 |
03 |
15 |
|
|
C=先导 |
O=常开 |
43=系列号 |
D=塑封接 |
A10=AC110V |
N=NBR |
31=锻黄铜 |
03=3/8'' |
15=15.0 |
L=带灯接线盒 |
|
式 |
|
线盒式 |
A20=AC220V |
丁腈橡 |
33=316不锈钢浇铸 |
04=1/2'' |
20=20.0 |
J=外置降温模块 |
|
|
|
|
|
D12=DC12V |
胶 |
|
05=3/4'' |
25=25.0 |
D=数字定时器 |
|
|
|
|
A=铁壳接 |
D24=DC24V |
|
|
06=1'' |
35=35.0 |
N=美标NPT连接 |
|
|
|
|
线盒式 |
|
V=VITON |
|
07=1 1/4'' |
40=40.0 |
其他螺纹可以定 |
|
|
|
|
|
|
氟橡胶 |
|
08=1 1/2'' |
50=50.0 |
制 |
|
|
|
|
E=防爆型 |
|
|
|
09=2'' |
|
|
|
|
|
|
|
|
E=EPDM |
|
10=法兰连接 |
|
|
|
|
|
|
|
|
三元乙 |
|
|
|
|
|
|
|
|
|
|
丙 |
|
|
|
|
|
