接管尺寸 |
流量通径mm |
流量系数CV |
流体压力范围（bar） |
线 圈 |
功率 |

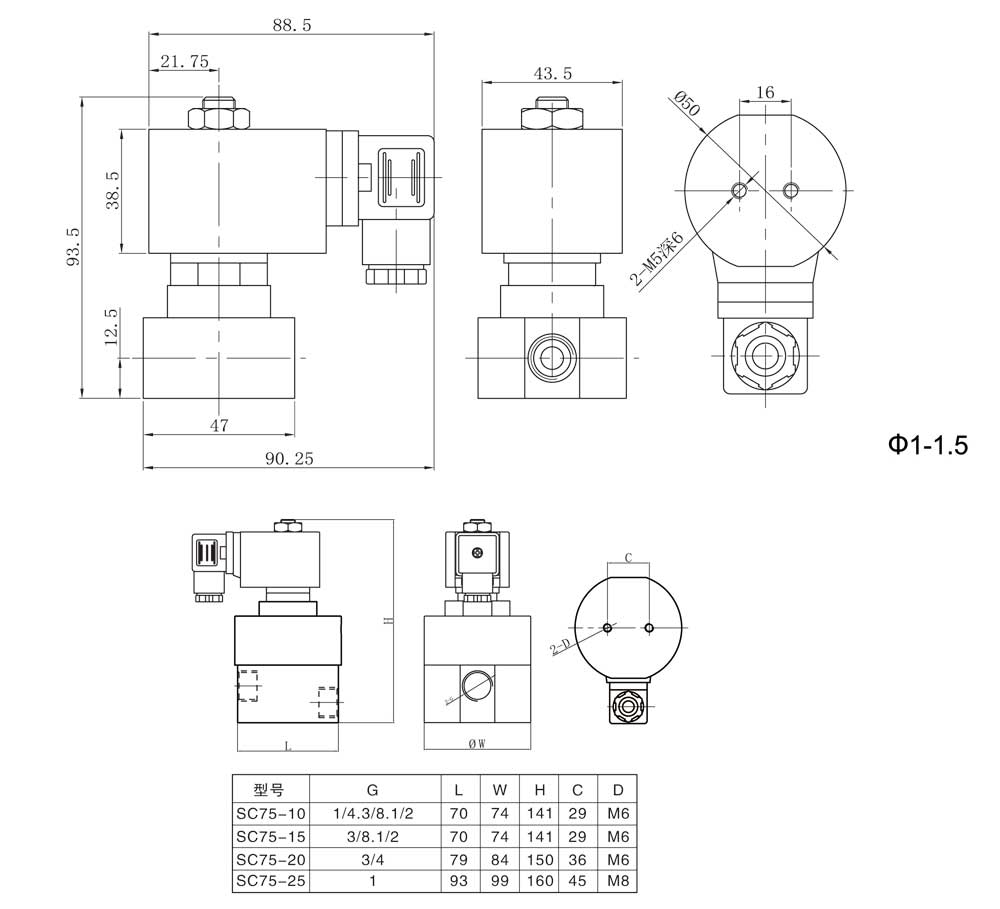

外形尺寸长×宽×高L×W×H |
重量KG |
订货型号 以下表中电压为220VAC 50/60HZ |
||||
|
气体 |
液体 |
配置 |
AC 220V |
DC 24V |
||||||||
|
AC |
DC |
AC |
DC |
|||||||||
|
1/8” |
1.0 |
0.04 |
0-350 |
0 -250 |
0-350 |
0 -250 |
M |
7 |
9 |
47×50×93.5 |
0.8 |
SC75MA20K400101 |
|
1.2 |
0.08 |
0-300 |
0 -230 |
0-300 |
0 -230 |
M |
7 |
9 |
47×50×93.5 |
0.8 |
SC75MA20K4001R1 |
|
|
1.5 |
0.14 |
0-250 |
0 -180 |
0-250 |
0 -180 |
M |
7 |
9 |
47×50×93.5 |
0.8 |
SC74MA20K4001R2 |
|
|
1/4” |
1.0 |
0.04 |
0-350 |
0 -250 |
0-350 |
0 -250 |
M |
7 |
9 |
47×50×93.5 |
0.8 |
SC75MA20K400201 |
|
1.2 |
0.08 |
0-300 |
0 -230 |
0-300 |
0 -230 |
M |
7 |
9 |
47×50×93.5 |
0.8 |
SC75MA20K4002R1 |
|
|
1.5 |
0.14 |
0-250 |
0 -180 |
0-250 |
0 -180 |
M |
7 |
9 |
47×50×93.5 |
0.8 |
SC75MA20K4002R2 |
|
|
1/4” |
8.0 |
1.0 |
0-110 |
0-90 |
0-110 |
0-90 |
M |
7 |
9 |
55×59×102 |
1.16 |
SC75MA20V400208 |
|
3/8” |
8.0 |
1.0 |
0-110 |
0-90 |
0-110 |
0-90 |
M |
7 |
9 |
55×59×102 |
1.16 |
SC75MA20V400308 |
|
1/2” |
8.0 |
1.0 |
0-110 |
0-90 |
0-110 |
0-90 |
M |
7 |
9 |
55×59×102 |
1.16 |
SC75MA20V400408 |
|
1/4” |
10 |
2.1 |
0-350 |
0 -300 |
0-350 |
0 -300 |
M |
7 |
9 |
70×74×140 |
3.0 |
SC75MA20K400210 |
|
3/8” |
10 |
2.1 |
0-350 |
0 -300 |
0-350 |
0 -300 |
M |
7 |
9 |
70×74×140 |
3.0 |
SC75MA20K400310 |
|
15 |
3.5 |
0-350 |
0 -300 |
0-350 |
0 -300 |
M |
7 |
9 |
70×74×140 |
2.6 |
SC75MA20K400315 |
|
|
1/2” |
10 |
2.1 |
0-350 |
0 -300 |
0-350 |
0 -300 |
M |
7 |
9 |
70×74×140 |
3.0 |
SC75MA20K400410 |
|
15 |
3.5 |
0-350 |
0 -300 |
0-350 |
0 -300 |
M |
7 |
9 |
70×74×140 |
2.6 |
SC75MA20K400415 |
|
|
3/4” |
20 |
7 |
0-300 |
0 -230 |
0-300 |
0 -230 |
M |
7 |
9 |
79×84×150 |
3.6 |
SC75MA20K400520 |
|
1” |
25 |
11 |
0-300 |
0 -230 |
0-300 |
0 -230 |
M |
7 |
9 |
93×99×160 |
5.3 |
SC75MA20K400625 |
|
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
||
|
SC75型 |
线圈类型 |
电压 |
密封材料 |
阀体材质类型 |
连接方式 |
流量通径 |
其它选配 |
||
|
S |
C |
75 |
M |
A20 |
K |
40 |
01 |
01 |
N |
|
S:专用阀 |
C：常闭 |
75=低功 |
M=低功耗 |
A10=AC110V |
K=PEEK |
40=316不锈钢锻 |
01=1/8 |
01=1.0 |
N=NPT螺纹 |
|
|
|
耗超高 |
塑封接线 |
A20=AC220V |
|
|
02=1/4'' |
08=8.0 |
其他螺纹可定制 |
|
|
|
压电磁阀 |
盒式 |
D12=DC12V |
|
|
03=3/8'' |
10=10 |
|
|
|
|
|
（注：接线 |
D24=DC24V |
|
|
04=1/2'' |
15=15 |
|
|
|
|
|
盒必须配 |
|
|
|
05=3/4'' |
20=20 |
|
|
|
|
|
防浪涌接 |
|
|
|
06=1'' |
25=25 |
|
|
|
|
|
线盒） |
|
|
|
|
R1=1.2 |
|
|
|
|
|
|
|
|
|
|
R2=1.5 |
|
