3/2Way high temperatureElectric flangeBall Valves

Product overview3-way electric high temperature ball valve seat, seal is made of high temperature special PPL replace of TEFLON, use of special processing technology, Has better high temperature resistance, thermal stability, corrosion resistance and have self lubricating.Two-way electric high temperature ball valve life 3 ~ 5 times that of conventional 2-ways ball valve.Medium: water, steam, thermal oil, acids, etc. Medium temperature: - 20 C - 200 X：.

Product characteristic

1.3-way electric flanae ball valve have two and four seal structure, the valve core hole have L type and T type two kinds of structure forms, USES the Angle control valve core, changing the valve core hole with apertures connection state,Can be realized for three different combination control pipeline.
2.Applicable to many medium and can realize 2-way flow.
3.The flow capacity is big, the 3-way ball valve can control gas, liquid and steam, more suitable for the high viscosity control Granular flow, fiber.Applies to a strict sealing occasions.Ball valve are all valve class One of least resistance of fluid.
4.Two seat sealing 3-way ball valve has a compact structure, beautiful shape, sealed performance is good, it can be real switch to the flow direction of medium pipeline, also can make the perpendicular two channels connected or shut down.
5.The four seat sealing 3-way ball valve has a compact structure, beautiful shape, sealed performance is good, not only can implementation of the media in the pipeline flow switch, but also can control the medium inside the pipeline rivers or flexible shunt.
6.T type valve core hole can make three orthogonal pipe connected to each other or switch and shunt or confluence role;L-type pipeline into two orthogonal channel.Make another channel cut off and the flow direction of medium change role.

Down PDF

Model specification
Product structure

DN (mm)	Orifice mm	Operating Pressure Differential（bar）		Fluids Temp ℃	Actuator		L×W×H	Model Code 220VAC 50/60HZ
		CV Facto	Steam high temp,gas and High temp liquid		Voltage AC	Torque N·M
25	12	0	2.5	-20- 200	AC220V	50	180×191	QD85LA20P32F25
								QD85LA20P32F25K
								QD85TAA20P32F25
								QD85TAA20P32F25K
								QD85TBA20P32F25
								QD85TBA20P32F25K
								QD85TCA20P32F25
								QD85TCA20P32F25K
								QD85TDA20P32F25
								QD85TDA20P32F25K
40	29	0	2.5	-20- 200	AC220V	100	220×216	QD85LA20P32F40
								QD85LA20P32F40K
								QD85TAA20P32F40
								QD85TAA20P32F40K
								QD85TBA20P32F40
								QD85TBA20P32F40K
								QD85TCA20P32F40
								QD85TCA20P32F40K
								QD85TDA20P32F40
								QD85TDA20P32F40K
50	48	0	2.5	-20- 200	AC220V	300	240 x 256	QD85LA20P32F50
								QD85LA20P32F50K
								QD85TAA20P32F50
								QD85TAA20P32F50K
								QD85TBA20P32F50
								QD85TBA20P32F50K
								QD85TCA20P32F50
								QD85TCA20P32F50K
								QD85TDA20P32F50
								QD85TDA20P32F50K

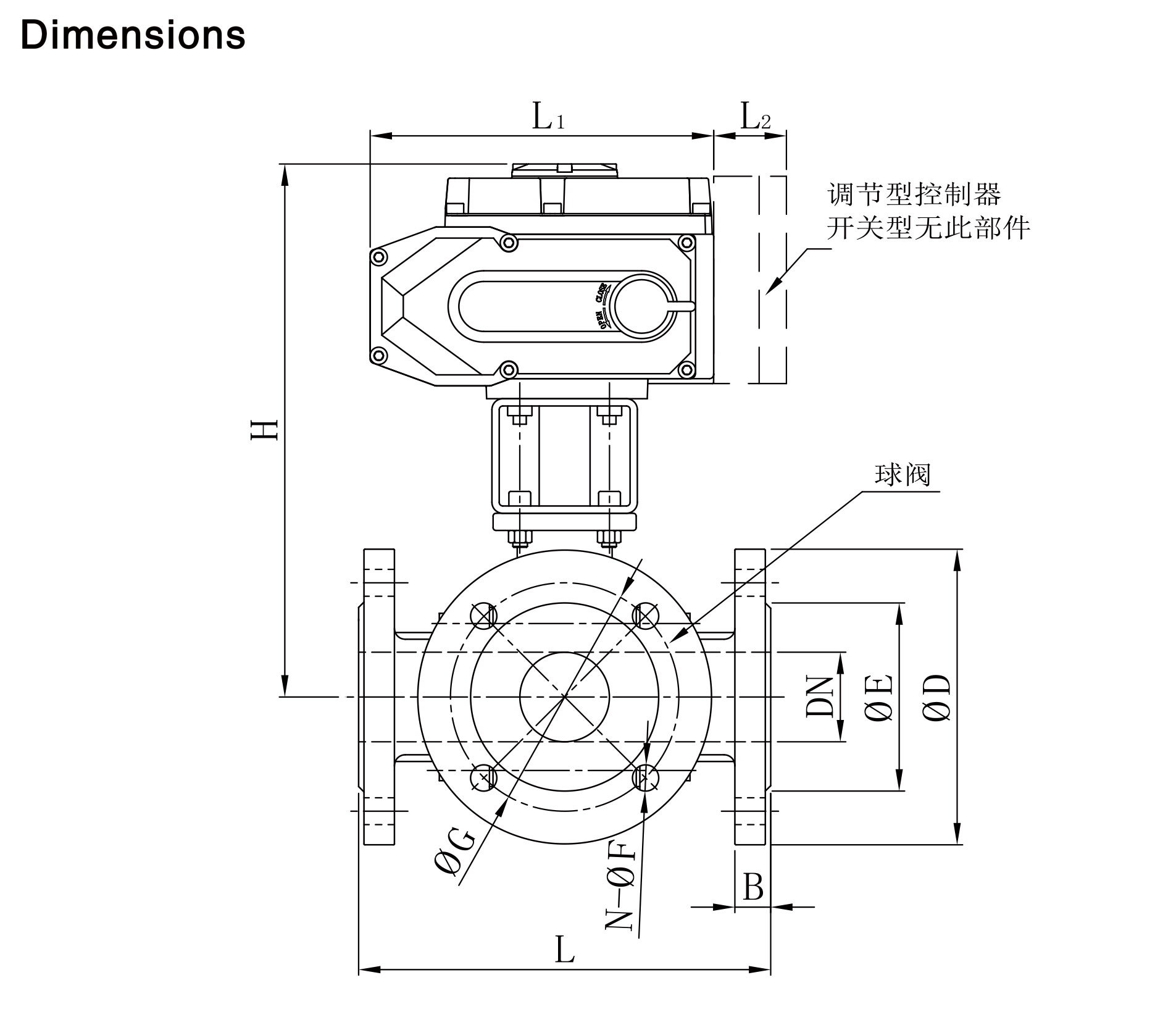

DN(mm)	SIZE（mm）									Mode code AC220V
	L	D	G	E	B	H	N-F	L₁	L₂
25	180	115	85	65	14	254	4-14	160	--	DQ- 008
									40	DQ- 008K
40	220	150	110	85	16	280	4-18	189	--	DQ- 015
									40	DQ- 015K
50	240	160	125	100	16	330	4-18	268	--	DQ- 030
									40	DQ- 030K
