3/2 way electric flange Ball Valves

Product overview

electric ball valve is an important actuator in industrial automation control system. 3-way electric flange ball valve is a comprehensive technology at China and abroad and the development of new 3-way switch to adjust.The standard ball Core is L type 2 port to change the relative Angle ball core and pipeline, three pipeline fluid can be real the different combination control, which can T channel function matching.lt has a large flow capacity, the electric ball valve Section of high precision, adjustable ratio, good sealing, lightweight，simple structure, convenient maintenance, long service life Wait for a cnaracteristic.This product is typically used for sealing requirements of the high places, also suitable for control of liquid, gas, steam Such as medium, is widely used in paper industry, sugar, oil, chemical industry, metallurgy, power stations and other work areas.

Product characteristic
1.3-way electric flange ball valve have two and four seal structure, the valve core hole have L type and T type two kinds of structure forms, USES the Angle control valve core, changing the valve core hole with apertures connection state,Can be realized for three different combination control pipeline.
2.Applicable to many medium and can realize two-way flow.
3.The flow capacity is big, the 3-way ball valve can control gas, liquid and steam, more suitable for the high viscosity control Granular flow, fifier.Applies to a strict sealing occasions.Ball valve are all valve class One of least resistance of fluid.
4.Two seat sealing 3-way ball valve has a compact structure, beautiful shape, sealed performance is good, it can be real switch to the flow direction of medium pipeline, also can make the perpendicular two channels connected or shut down.
5.The four seat sealing 3-way ball valve has a compact structure, beautiful shape, sealed performance is good, not only can implementation of the media in the pipeline flow switch, but also can control the medium inside the pipeline rivers or flexible shunt.
6.T type valve core hole can make three orthogonal pipe connected to each other or switch and shunt or confluence role;L-type pipeline into two orthogonal channel.Make another channel cut off and the flow direction of medium change role.

Down PDF

Model specification

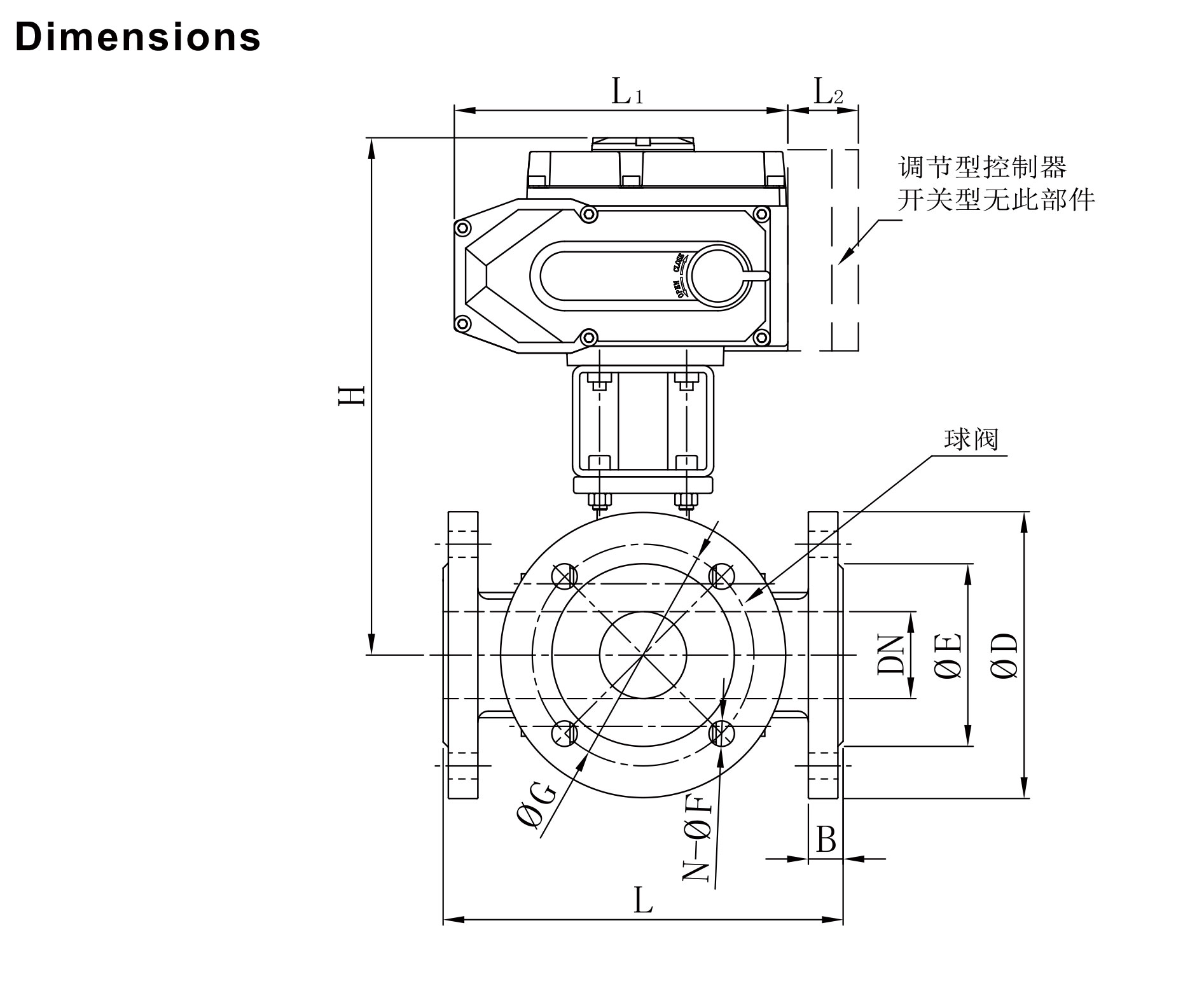

Product structure

1			2	3	4	5	6	7	8
Dq85 Series			Body Connection mode	Voltage	Seal material	Body material	Pipe size	Orifice (mm)	Options
D	Q	85	L	A20	T	32	10	15	K
D: Electric	Q= Ball valve	85= 3-Way Flange Ball 86= 3-Way High Temp Flange Ball	L type TA type TB type TC type TD type	A10=AC110V A20=AC220V D24=DC24V	T=PTFE P=PPL（高温）	32=SS304 33=SS316 39=Cast steel	10= Flange	25=25 40=40 50=50	K=(4-20mA or 0-10VDC

(mm)

Orifice

Operating Pressure Differential（bar）

Fluids Temp

℃

Actuator

L×W×H

Model Code 220VAC

50/60HZ

Facto

Neutral gas, neutral liquids Petrochemical products, corrosive medium

Voltage AC

Torque

N·M

2.5

0-120

AC220V

180×191

QD85LA20T32F25

QD85LA20T32F25K

QD85TAA20T32F25

QD85TAA20T32F25K

QD85TBA20T32F25

QD85TBA20T32F25K

QD85TCA20T32F25

QD85TCA20T32F25K

QD85TDA20T32F25

QD85TDA20T32F25K

2.5

0-120

AC220V

100

220×216

QD85LA20T32F40

QD85LA20T32F40K

QD85TAA20T32F40

QD85TAA20T32F40K

QD85TBA20T32F40

QD85TBA20T32F40K

QD85TCA20T32F40

QD85TCA20T32F40K

QD85TDA20T32F40

QD85TDA20T32F40K

2.5

0-120

AC220V

300

240×256

QD85LA20T32F50

QD85LA20T32F50K

QD85TAA20T32F50

QD85TAA20T32F50K

QD85TBA20T32F50

QD85TBA20T32F50K

QD85TCA20T32F50

QD85TCA20T32F50K

QD85TDA20T32F50

QD85TDA20T32F50K
