DQ83

2/2 way three-chip electric Ball Valves

Product overview

2-pieces electric ball valve match SLX electric actuators suitable, have to input adopts the integration struction design the control signal and single-phase power supply can control operation Electric ball valve is a kind of 90° to Close the ball valve, flow capacity coefficient of flow resistance is small, strong function, small volume, reliable performance, structure Simple, easy maintenance, long service life, etc. Body channels and connection pipe diameter in the center of the same Online, through the medium can be almost no losses This product is often used for sealing of high demand Place, in addition to the general fluid control, but also particularly suitable to control sewage, viscous and containing particles, fine impurity of medium, which are widely used in food, environmental protection, light industry, oil, chemical teaching and research equipment Engineering, electric power industries such as industrial automatic control system.

Product characteristic

1.The body casting the use of advanced technology, reasonable structure, beautiful appearance.
2.Fluid resistance small, ball valve is the smallest of all valve fluid resistance class.
3.The seat sealing performance is good, use TEFLON as sealing ring, structure is easy to close Seal and ball valve sealing ability increases as the pressure medium.
4.As the seal ring has good lubrication, the sphere of the friction coefficient is small,extend the ball valve life.
5.Bottoms type valve stem and the head of valve stem head is special design, such as fire stem seal damage, the valve stem Convex sets and the body can also be formed between the metal contact, to ensure that the valve stem seal.

Down PDF

  • Model specification

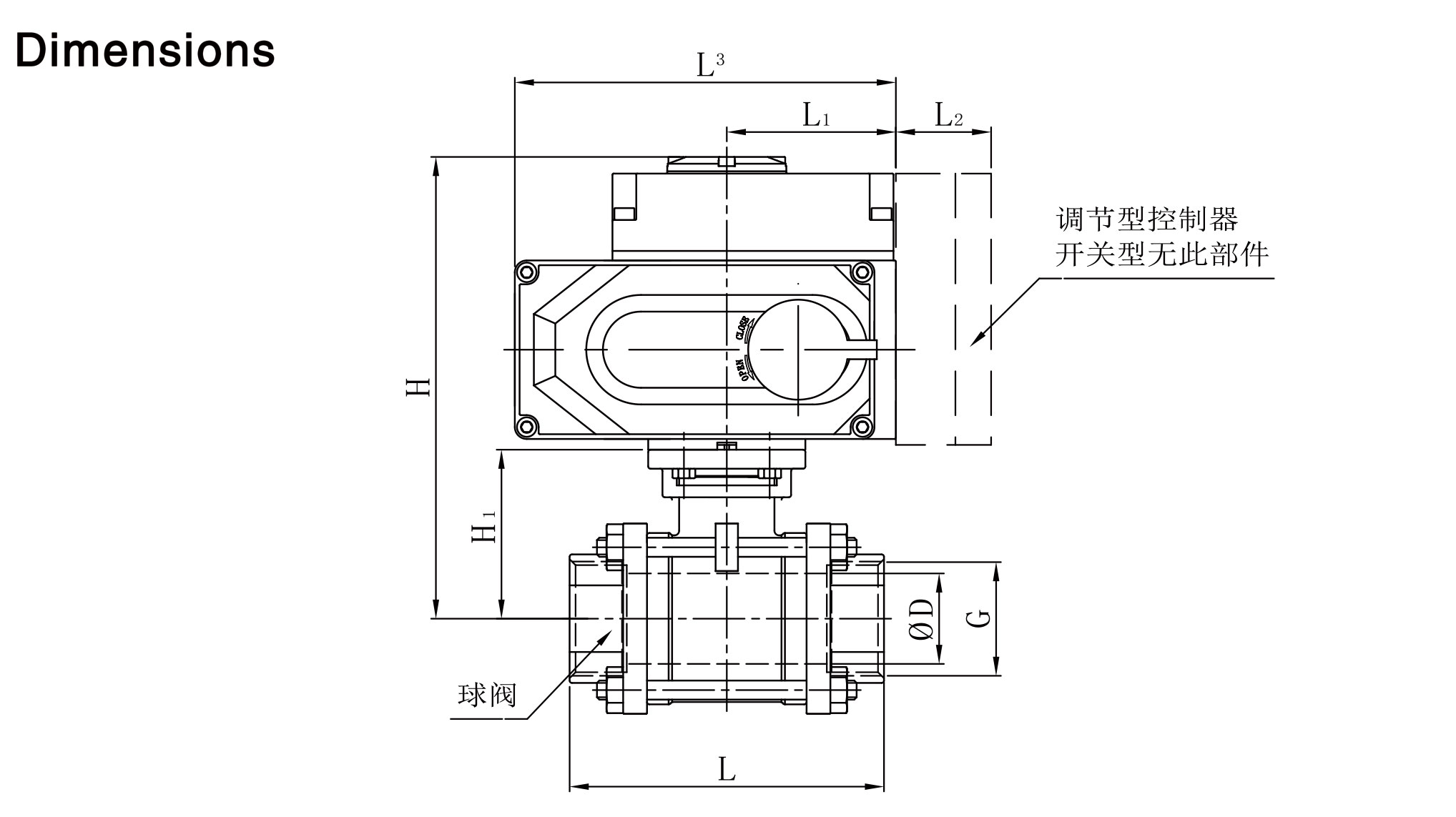

  • Product structure







Size







Orifice mm







CV

Facto

Operating Pressure Differential（bar）

Fluids Temp.

Actuator









L×W×H





Weight KG





Model Code 220VAC

50/60HZ

Neutral gas, neutral liquids Petrochemical products, corrosive medium



℃



Voltage AC



Torque N·M



1 / 2 "



15



4.5



0-25



0-120



220V



50



79×210

5.0

DQ83SA20T320415

6.0

DQ83SA20T320415K



3/4"



20



7.5



0-25



0-120



220V



50



82×217

5.0

DQ83SA20T320520

6.0

DQ83SA20T320520K



1"



25



12



0-25



0-120



220V



50



90×227

5.5

DQ83SA20T320625

6.5

DQ83SA20T320625K



1 - 1/4 "



35



24



0-25



0-120



220V



80



112×230

6.5

DQ83SA20T320735

7.0

DQ83SA20T320735K



1 - 1/2 "



40



29



0-25



0-120



220V



100



120×263

8.0

DQ83SA20T320840

9.5

DQ83SA20T320840K



2"



50



48



0-25



0-120



220V



150



144×270

9.5

DQ83SA20T320950

11

DQ83SA20T320950K



2-1/2"



65



52



0-25



0-120



220V



300



176×337

21

DQ83SA20T322165

23

DQ83SA20T322165K



3"



80



80



0-25



0-120



220V



400



200×363



DQ83SA20T322380



DQ83SA20T322380K



4"



100



128



0-25



0-120



220V



600



227×411



DQ83SA20T3224100



DQ83SA20T3224100K


1

2

3

4

5

6

7

8

Dq83 Series

Body Connection

mode

Voltage

Seal material

Body

material

Pipe size

Orifice

(mm)

Options

D

Q

83

S

A20

T

32

F

15

K



D=



Q=Ball



83=



S=3



A10=AC110V



T=PTFE



32=SS304



04=1/2”



15=15



K=(4-20mA or

Electric

valve

2-Way Thread

Pieces

A20=AC220V D24=DC24V

P=PPL

（ High Temp）

33=SS316

39= Cast steel

05=3/4”

06=1”

20=20

25=25

0-10VDC





84=

2-Way









07=11/4”

35=35







High









08=11/2”

40=40







Temp

Thread









09=2”

50=50

















21=21/2”

65=65

















23=3”

80=80

















24=4”

100=100



















125=125



















150=150



















200=200
