2/2 way electric flange Ball Valves

Product overview

Electric ball valve is an important actuator in industrial automation control system.His motorized valve seat Change is relation with directly proportiona valve stroke.Mainly used for truncated or on line in the medium,as well Can be used for the adjustment and control of the fluid, is one of the industrial automation process control piping components 90° is a corner to realize the opening and closing the electric ball valve of ball valve, it has a large flow capacity,flow resistance Several small, simple structure, convenient maintenance, long service life, etc.The body channel and the connection pipe diameter in the same center line, through the medium can be almost no losses.This product is often used to seal the demand is higher Place, in addition to the general fluid control, also suitable for control of sewage and fibrous impurities of medium,Widely used in petroleum, chemical, metallurgy.Power stations and other work areas.

Product characteristic

1.Applicable for pipe a big pressure difference , strict sealing of the switch and cut off the pipeline medium process and the fluid flow control system.
2.Applicable for different kinds of fluid medium and realize 2-way flow.
3.Fluid resistance small, ball valve is the smallest of all valve fluid resistance class.
4.The seat sealing performance is good, use TEFLON as sealing ring, structure is easy to close seal and ball valve sealing ability increases as the pressure medium.
5.As the seal ring has good lubrication, the sphere of the friction coefficient is small, extend the ball valve life.
6.Bottoms type valve stem and the head of valve stem head is special design, such as fire stem seal damage, the valve stem Convex sets and the body can also be formed between the metal contact, to ensure that the valve stem seal

Down PDF

Model specification

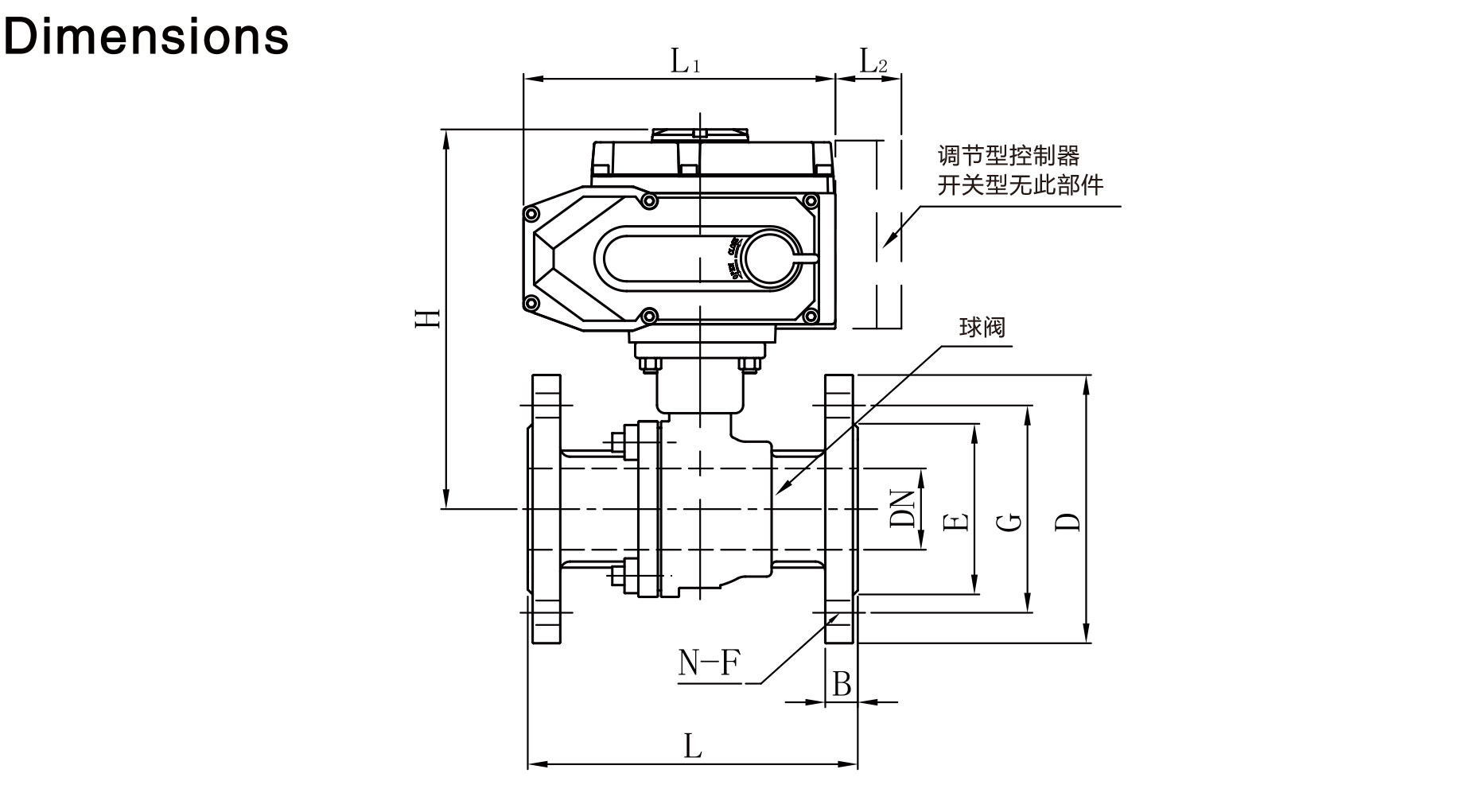

Product structure

DN(mm)	SIZE（mm）									Mode code AC220V
	L	D	G	E	B	N-F	H	L₁	L₂
15	130	95	65	46	14	4-14	160	123	--	DQ-003
							169	160	40	DQ-005K
20	130	105	75	56	16	4-14	166	123	--	DQ-003
							175	160	40	DQ-005K
25	140	115	85	65	16	4-14	176	123	--	DQ-003
							185	160	40	DQ-005K
32	165	140	100	76	18	4-18	192	160	--	DQ-005
									40	DQ-005K
40	165	150	110	84	18	4-18	197	160	--	DQ-008
									40	DQ-008K
50	203	165	125	99	20	4-18	214	189	--	DQ-010
									40	DQ-010K
65	241	185	145	118	22	4-18	268	268	--	DQ-030
									40	DQ-030K
80	283	200	160	132	24	8-18	278	268	--	DQ-030
									40	DQ-030K
100	305	235	190	156	24	8-22	304	268	--	DQ-040
									40	DQ-040K
125	381	270	220	184	26	8-26	347	268	--	DQ-100
									40	DQ-100K
150	403	300	250	211	28	8-26	366	268	--	DQ-100
									40	DQ-100K
200	502	360	310	274	30	12-26	621	508	--	DQ-160
									40	DQ-160K

Size

Orifice mm

Facto

Operating Pressure Differential（bar）

Fluids Temp.

Actuator

L×W×H

Weight KG

Model Code 220VAC

50/60HZ

Neutral gas, neutral liquids Petrochemical products, corrosive medium

℃

Voltage AC

Torque N·M

DN15

4.5

0-25

0 -120

220V

130×95×160

4.5

DQ81CA20T321015

130×95×170

7.5

DQ81CA20T321015K

DN20

7.5

0-25

0 -120

220V

130×105×166

5.5

DQ81CA20T321020

130×105×175

8.5

DQ81CA20T321020K

DN25

0-25

0 -120

220V

145×115×176

6.5

DQ81CA20T321025

145×115×185

9.5

DQ81CA20T321025K

DN35

0-25

0 -120

220V

165×140×192

9.5

DQ81CA20T321035

DQ81CA20T321035K

DN40

0-25

0 -120

220V

165×150×197

DQ81CA20T321040

DQ81CA20T321040K

DN50

0-25

0 -120

220V

100

203×165×214

DQ81CA20T321050

DQ81CA20T321050K

DN65

0-25

0 -120

220V

200

241×185×268

DQ81CA20T321065

DQ81CA20T321065K

DN80

0-25

0 -120

220V

300

283×200×278

DQ81CA20T321080

DQ81CA20T321080K

DN100

100

128

0-25

0 -120

220V

400

305×235×304

DQ81CA20T3210100

DQ81CA20T3210100K

DN125

125

165

0-25

0 -120

220V

1000

381×270×347

DQ81CA20T3210125

DQ81CA20T3210125K

DN150

150

215

0-25

0 -120

220V

1000

403×300×366

DQ81CA20T3210150

DQ81CA20T3210150K

DN200

200

300

0-25

0 -120

220V

1600

502×360×621

169

DQ81CA20T3210200

171

DQ81CA20T3210200K
