CC41

Pilot 2/2 way solenoid valve

1. 2-Way normally dosed solenoid valve;Closed when de-energized, open when energized.
2. Special design, Serialized products .small in size .large flow rate.widely use.
3. Body material: SS304.
4. Ambient Temp. 0°C-65°C； Fluids Temp： 0°C-110°C.
5. Flow as the arrow .mounts in any position :Best position is Solenoid vertical and upright diriction.
6. Voltage: 220VAC /230VAC/380VAC/50/60HZ 24VDC;Voltage Tolerance: +10% to -10% applicable voltage;Coil can fix Germany Nass Coil.

Down PDF

  • Model specification
  • Product structure





Pipe Size G





Orifice mm





CV

rate

Pressure（bar）

Coil Type



Power





Externsions Dimensions L×W×H





Weight

KG





Model Code

220VAC 50/60HZ

Air Gas

liquid

To confi gure



AC 220V



DC 24V

AC

DC

AC

DC



1/ 4”

8.0

3.1

1-150

1-150

1-150

1-150

D

22

20

57×39.5×97

0.65

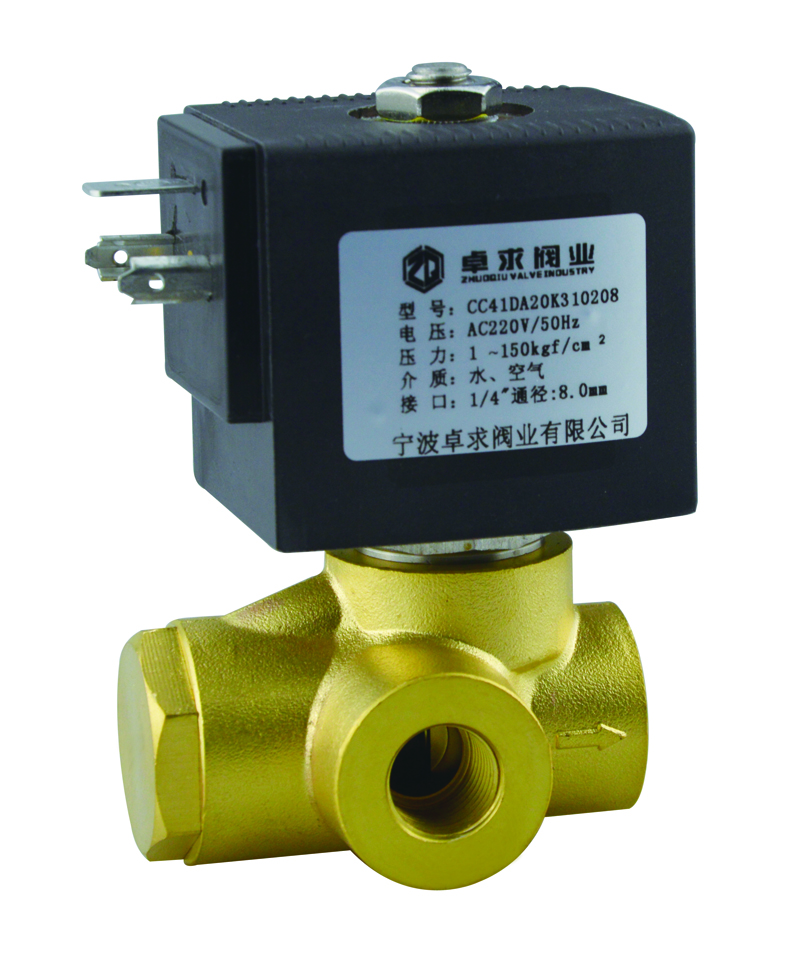

CC41DA20K310208

8.0

1.2

0.5-90

0.5-70

0.5-90

0.5-70

D

35(rectifier)

55×60×103

1.26

CC41DA20N320208





3 / 8”

8.0

3.1

1-150

1-150

1-150

1-150

D

22

20

57×39.5×97

0.63

CC41DA20K310308

8.0

1.2

0.5-90

0.5-70

0.5-90

0.5-70

D

35(rectifier)

55×60×103

1.24

CC41DA20N320308

15

4.2

1-75

1-55

1-75

1-55

D

33

25

75×52×130

1.45

CC41DA20K310315

15

4.2

1-75

1-55

1-75

1-55

D

33

25

75×52×130

1.45

CC41DA20N320315



1/ 2”

8.0

1.2

0.5-90

0.5-70

0.5-90

0.5-70

D

35(rectifier)

55×60×103

1.21

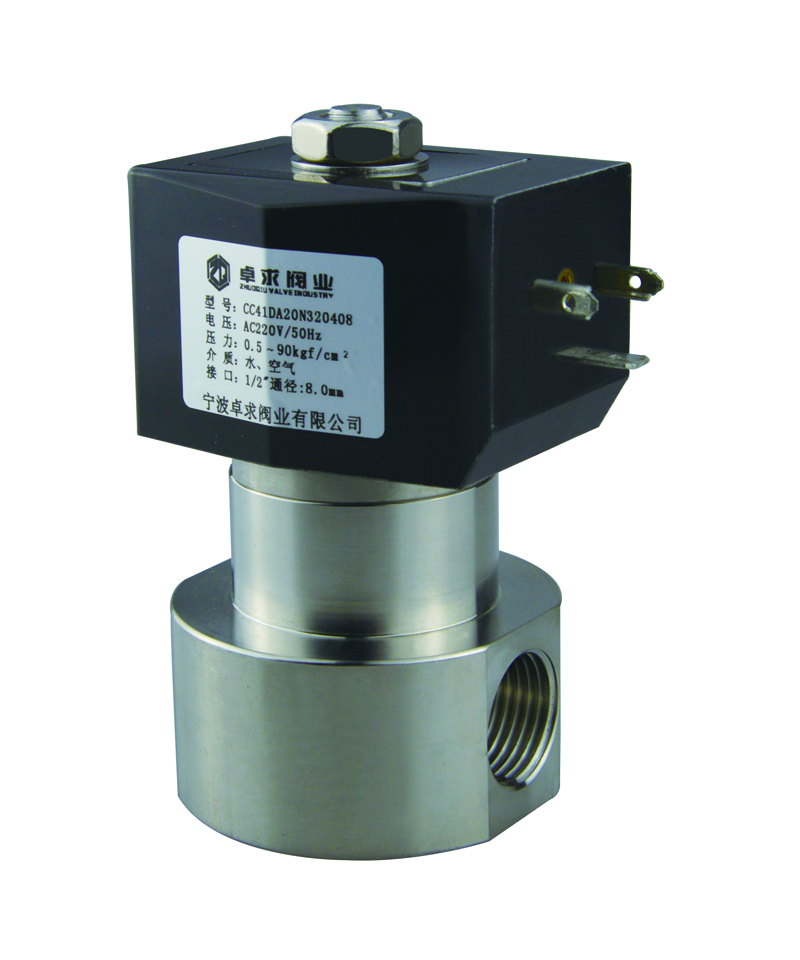

CC41DA20N320408

15

4.2

1-75

1-55

1-75

1-55

D

33

25

75×52×130

1.4

CC41DA20N310415

15

4.2

1-75

1-55

1-75

1-55

D

33

25

75×52×130

1.4

CC41DA20N320415



3 / 4”

20

7

1-65

1-50

1-65

1-50

D

33

25

85×60×141

1.7

CC41DA20N310520

20

7

1-65

1-50

1-65

1-50

D

33

25

85×60×141

1.7

CC41DA20N320520



1”

25

11

1-55

1-45

1-55

1-45

D

33

25

100×70×148

2.1

CC41DA20N310625

25

11

1-55

1-45

1-55

1-45

D

33

25

100×70×148

2.1

CC41DA20N320625


1

2

3

4

5

6

7

8



CC41



Coil Types



Voltage

Seal Material



Body Material



Pipe Size



Orifice



Options

C

C

41

D

A20

T

31

03

15



SHAPE \* MERGEFORMAT



C:



C：



41:



D=Din



A24=AC24V



N=NBR



31=Forged

Brass

32=304



02=1/4''



08=8.0



L=Neon Lamp

Direct Acting

Normally Closed

Series

Standard Connections, Fully Encapsulated

A36=AC36V A48=AC48V

A10=AC110V

E=EPDM V=VITON

K=PEEK

03=3/8''

04=1/2''

05=3/4''

15=15.0

20=20.0

25=25.0

J=External cooling module D=Timer

N=NPT









A20=AC220V



06=1''



Other threads can









D12=DC12V







be customized









D24=DC24V

















D36=DC36V
