CC46

CC46

Pilot 2/2 way solenoid valve

1. Max operation pressure: 16bar2. Operating pressure differential: 1.0-16bar
3. Ambient temperature: -10°C-50°C
4. Fluid media temperature: 0°C-130°C
5. Voltage: AC:380V;220V;36V/50Hz DC: 12V;24; 110V;220V
6. Insulation class: B class
7. Coil temperature rising: -15% -10%
8.Coil temperature rising: +10% to -10% applicable voltage
9. fluid media: liquids, air, light oil <20CST
10.Mounting position: flow as arrow,solenoid vertical and upright direction.

Down PDF

Model specification

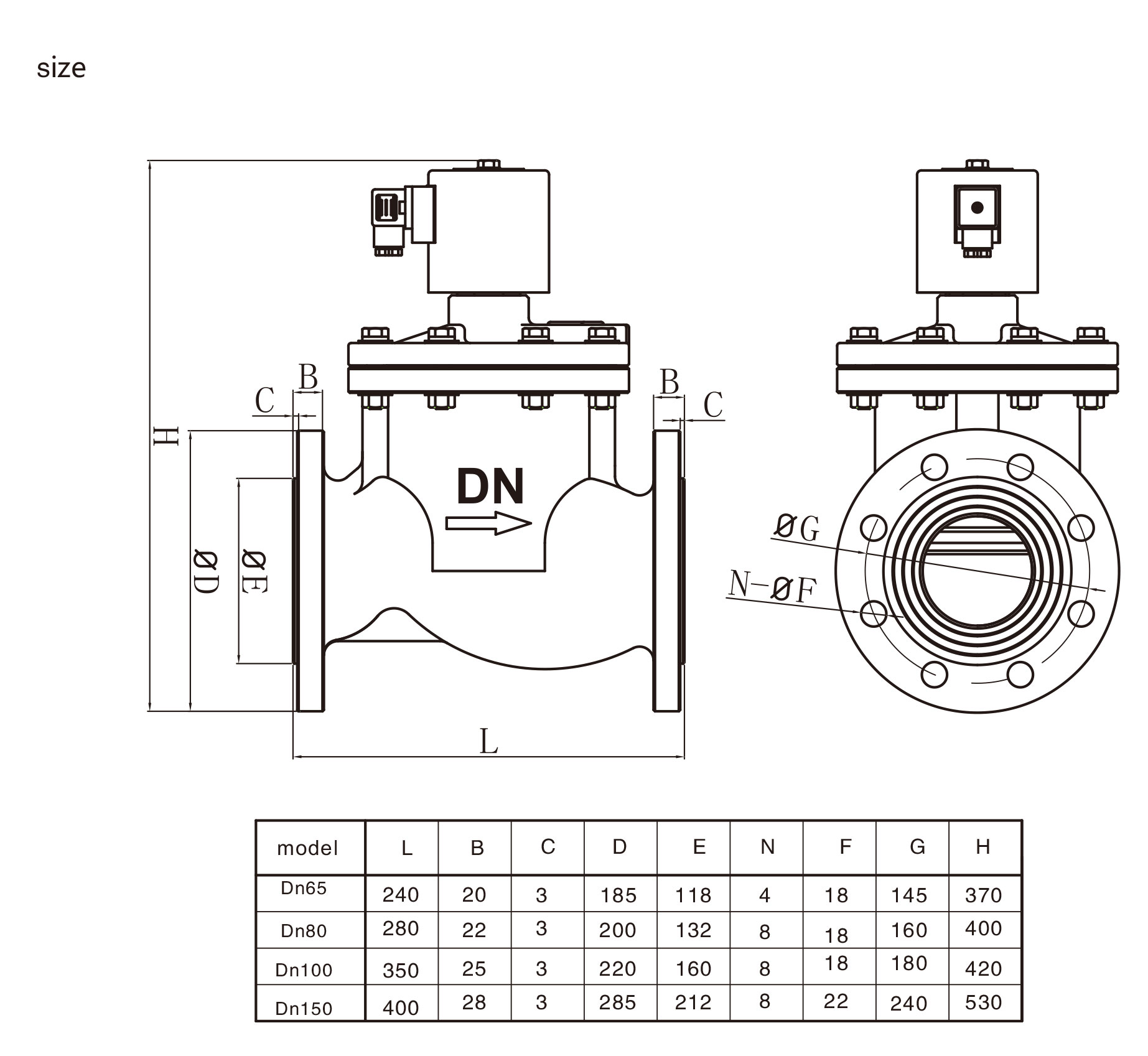

Product structure

Pipe Size G	Orifice mm	CV rate	Pressure（bar）				Coil Type	Power		Externsions Dimensions L×W×H	Weight KG	Model Code 220VAC 50/60HZ
			Air Gas		liquid		To confi gure	AC 220V	DC 24V
			AC	DC	AC	DC	To confi gure	AC 220V	DC 24V
Flange connec- tion	65	65	1-16	1-16	1-16	1-16	A	50	50	240×185×370	29	CC46AA20T341065
	80	104	1-16	1-16	1-16	1-16	A	50	50	280×200×400	34	CC46AA20T341080
	100	174	1-16	1-16	1-16	1-16	A	50	50	320×220×420	55	CC46AA20T3410100
	150	321	1-16	1-16	1-16	1-16	A	50	50	400×285×570	100	CC46AA20T3410150

1			2	3	4	5	6	7	8
CC46			Coil Types	Voltage	Seal Material	Body Material	Pipe Size	Orifice	Options
C	C	46	A	A20	T	34	10	65
C: Direct Acting	C： Normally Closed	46: Series	A=Metallic Housing S= Underwater	A24=AC24V A36=AC36V A48=AC48V	T=PTFE	34= cast iron	10= Flange connection	65=65.0 80=80.0 100=100.0	M= Manual adjustment
			Type	A10=AC110V				150=150.0
				A20=AC220V
				D12=DC12V
				D24=DC24V
				D36=DC36V
