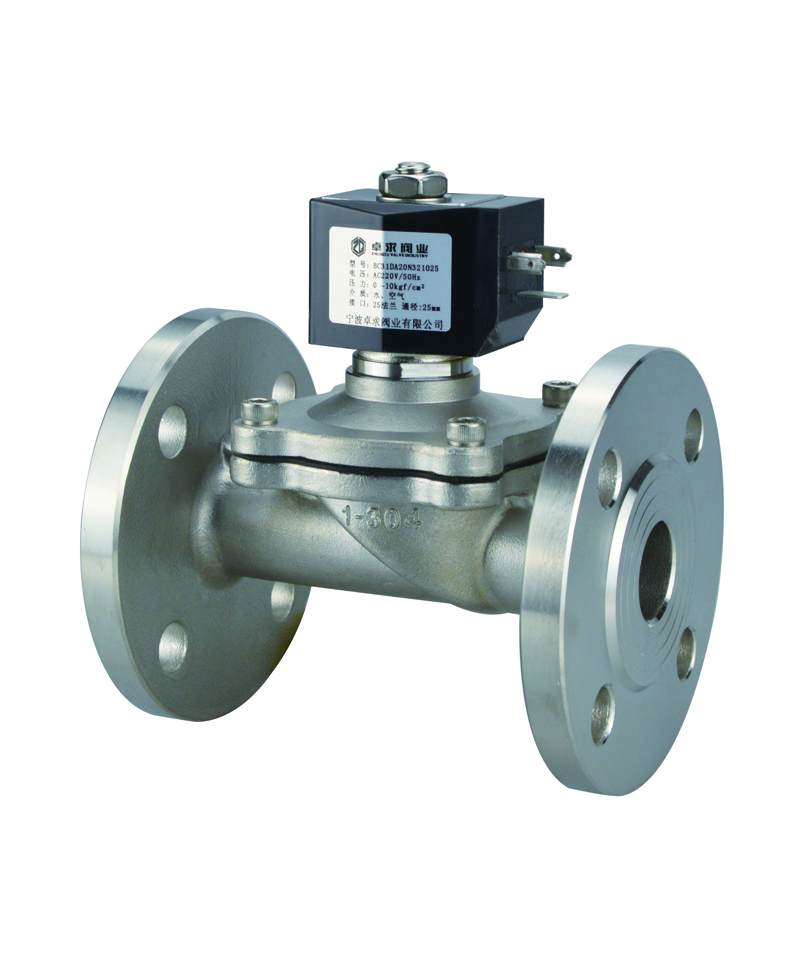

BC31

Step-by-step 2/2 way Direct Acting solenoid valve

1: 2-Way normally closed solenoid valve, Closed when de-energized, open when energized.
2: Body material: Barss\SS304
3: Max. Allowable pressure 16kgf/cm2;Ambient Temp. 0CC~65°C
4: Serialized products, small in size, large flow rate,widely use
5; Flow as the arrow, mounts in any position;Best position is Solenoid vertical and upright direction.
6: Voltage: 220VAC/230VAC/240VAC/110VAC/24V AC 50/60HZ 24VDC/12VDC; Voltage Tolerance: +10% to -10% applicable voltage
7: This series valves are offered NBR、VITON、EPDMetcfor Seals and diaphragm to provide on-off control of various fluids.
8: Coil can fix SM Coil. AC 220V/AC110V/AC24V/DC24V

Down PDF

  • Model specification

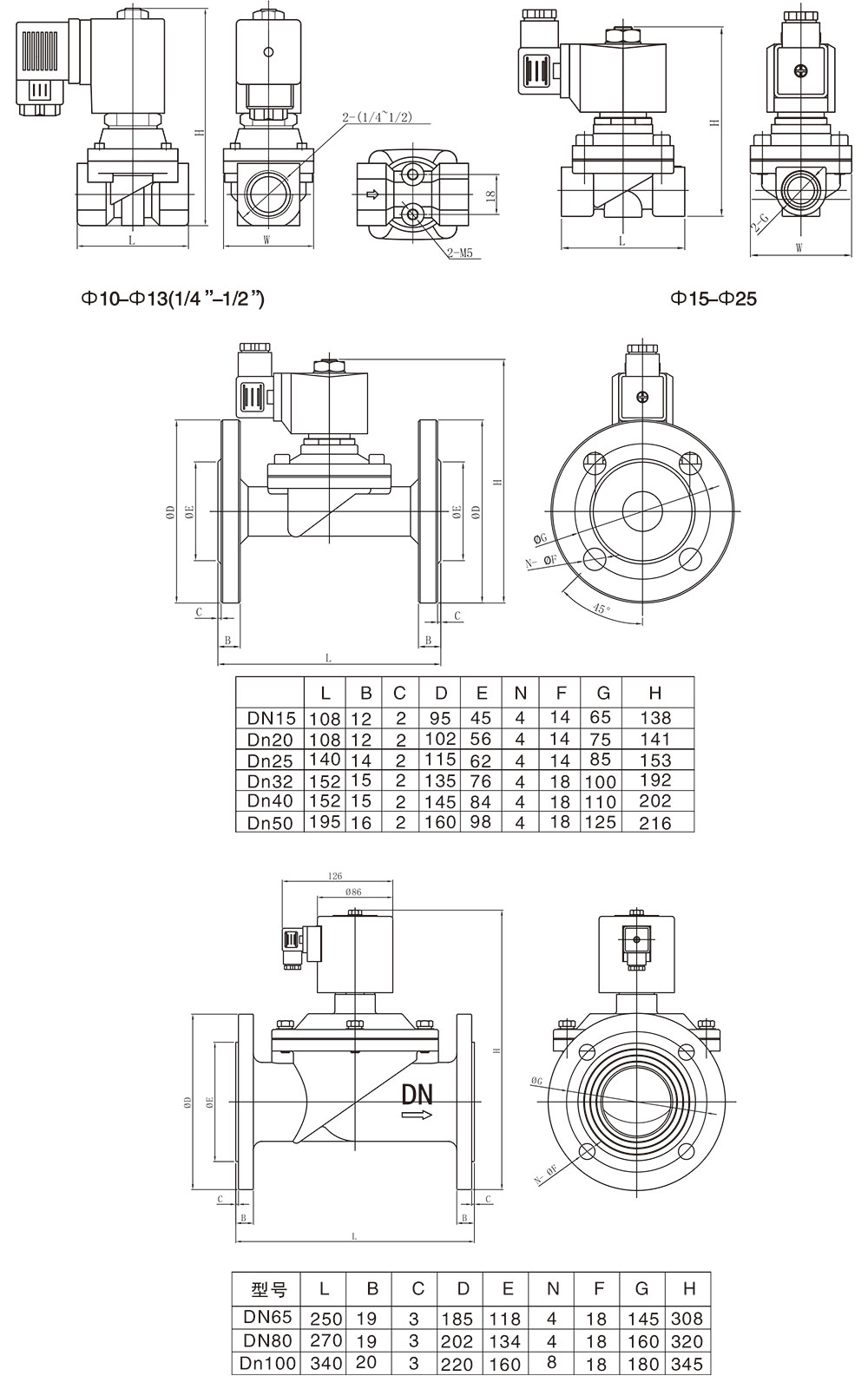

  • Product structure





Pipe Size G





Orifice mm





CV

rate



Pressure（bar）



Coil Type



Power





Externsions Dimensions L×W×H





Weight

KG





Model Code

220VAC 50/60HZ



Air Gas



liquid



To confi gure



AC 220V



DC 24V

AC

DC

AC

DC





1/4”

10

1.9

0-20

0-16

0-20

0-16

D

22

13

50×40.5×98

0.55

BC31DA20N310210

10

1.9

0-20

0-16

0-20

0-16

D

22

13

50×40.5×98

0.55

BC31DA20N320210

13

3.1

0-16

0-12

0-16

0-12

D

22

13

55×43×98

0.57

BC31DA20N310213

13

3.1

0-16

0-12

0-16

0-12

D

22

13

55×43×98

0.57

BC31DA20N320213









3/8”

10

2.4

0-20

0-16

0-20

0-16

D

22

13

50×40.5×98

0.54

BC31DA20N310310

10

2.4

0-20

0-16

0-20

0-16

D

22

13

50×40.5×98

0.54

BC31DA20N320310

13

3.1

0-16

0-12

0-16

0-12

D

22

13

55×43×98

0.56

BC31DA20N310313

13

3.1

0-16

0-12

0-16

0-12

D

22

13

55×43×98

0.56

BC31DA20N320313

15

4.8

0-10

0-6

0-10

0-6

D

20

20

69×57×106

0.9

BC31DA20N310315

15

4.8

0-10

0-6

0-10

0-6

D

20

20

69×57×106

0.9

BC31DA20N320315









1/2”

10

2.4

0-20

0-16

0-20

0-16

D

22

13

50×40.5×98

0.53

BC31DA20N310410

10

2.4

0-20

0-16

0-20

0-16

D

22

13

50×40.5×98

0.53

BC31DA20N320410

13

3.1

0-16

0-12

0-16

0-12

D

22

13

55×43×98

0.55

BC31DA20N310413

13

3.1

0-16

0-12

0-16

0-12

D

22

13

55×43×98

0.55

BC31DA20N320413

15

4.8

0-10

0-6

0-10

0-6

D

20

20

69×57×106

0.85

BC31DA20N310415

15

4.8

0-10

0-6

0-10

0-6

D

20

20

69×57×106

0.85

BC31DA20N320415



3/4”

20

7.6

0-10

0-6

0-10

0-6

D

20

20

73×57×114

1.08

BC31DA20N310520

20

7.6

0-10

0-6

0-10

0-6

D

20

20

73×57×114

1.08

BC31DA20N320520



1”

25

12

0-10

0-6

0-10

0-6

D

20

20

99×77×121

1.4

BC31DA20N310625

25

12

0-10

0-6

0-10

0-6

D

20

20

99×77×121

1.4

BC31DA20N320625



1 1/4”

35

24

0-10

0-6

0-10

0-6

D

57

45

112×86.5×150

2.5

BC31DA20N310735

35

24

0-10

0-6

0-10

0-6

D

57

45

112×86.5×150

2.5

BC31DA20N320735



1 1/2”

40

29

0-10

0-6

0-10

0-6

D

57

45

123×94×160

2.9

BC31DA20N310840

40

29

0-10

0-6

0-10

0-6

D

57

45

123×94×160

2.9

BC31DA20N320840



2”

50

48

0-10

0-6

0-10

0-6

D

57

45

165×123×183

5.4

BC31DA20N310950

50

48

0-10

0-6

0-10

0-6

D

57

45

165×123×183

5.4

BC31DA20N320950











法兰连接

15

4.8

0-10

0-6

0-10

0-6

D

20

20

108×95×138

1.8

BC31DA20N321015

20

7.6

0-10

0-6

0-10

0-6

D

20

20

108×102×141

2.0

BC31DA20N321020

25

12

0-10

0-6

0-10

0-6

D

20

20

140×115×153

2.9

BC31DA20N321025

35

24

0-10

0-6

0-10

0-6

D

57

45

152×135×192

5.1

BC31DA20N321035

40

29

0-10

0-6

0-10

0-6

D

57

45

152×145×202

6.1

BC31DA20N321040

50

48

0-10

0-6

0-10

0-6

D

57

45

195×160×216

8.2

BC31DA20N321050

65

75

0-6

0-5

0-6

0-5

D

57

64

250×185×308

15.2

BC31DA20N321065

80

90

0-6

0-5

0-6

0-5

D

57

64

270×202×320

18

BC31DA20N321080

100

160

0-6

0-5

0-6

0-5

D

57

64

340×220×345

23.5

BC31DA20N3210100


1

2

3

4

5

6

7

8



BC31



Coil Types



Voltage

Seal Material



Body Material



Pipe Size

Orifice



Options

B

C

31

D

A20

N

31

03

15



SHAPE \* MERGEFORMAT



A:

Direct Acting



C： Normally Closed



31:

Series



D= Plastic molding coil



N=Lead plastic forming coil A=Metallic Housing



W=Metallic Housing Lead wires



A24=AC24V A36=AC36V A48=AC48V A10=AC110V A20=AC220V D12=DC12V D24=DC24V D36=DC36V



N=NBR









V=VITON







E=EPDM



31=Brass 32=SS304

33=SS316



02=1/4''

03=3/8''

04=1/2''

05=3/4''

06=1''

07=1 1/4''

08=1 1/2''

09=2''

10=Flange connection



10=10.0

13=13.0

15=15.0

20=20.0

25=25.0

35=35.0

40=40.0

50=50.0

65=65.0

80=80.0

100=100.0



L=Neon Lamp J=External

cooling module D=Timer

N=NPT

Other threads can be customized
