AC13

2/2 way Direct Acting solenoid valve

1、2/2-way Direct Acting、Open when energized，
closed when de-energized
2、Automatic control of neutral gases and liquids
3、Small volume, large flow, simple structure
Control：Direct Acting
Body Material：Brass、Stainless steel 304(316 can be customized)
Maximum Pressure Resistance：30bar Maximum
Work Pressure：0~20bar
Ambient Temperature：0℃~65℃
Install：Flow as the arrow,Horizontal installation
Standard Voltage：AC：220V/50HZ 240/60HZ，AC110V,DC24V, 12V……
Voltage fluctuations：+10%~-10%
Protection Level：IP65 100%ED
Seal：NBR(N)、EPDM(E)、VITON(V)
Electrical connection: Standard Connections（PG11)
Lead Wires（Optional）

Medium viscosity：20cst

Medium：neutral gases and liquids

Medium Temperature： NBR ( -10~+80℃)

                                EPDM (-30~+130℃)

                                VITON (-20~+150℃)

Down PDF

  • Model specification

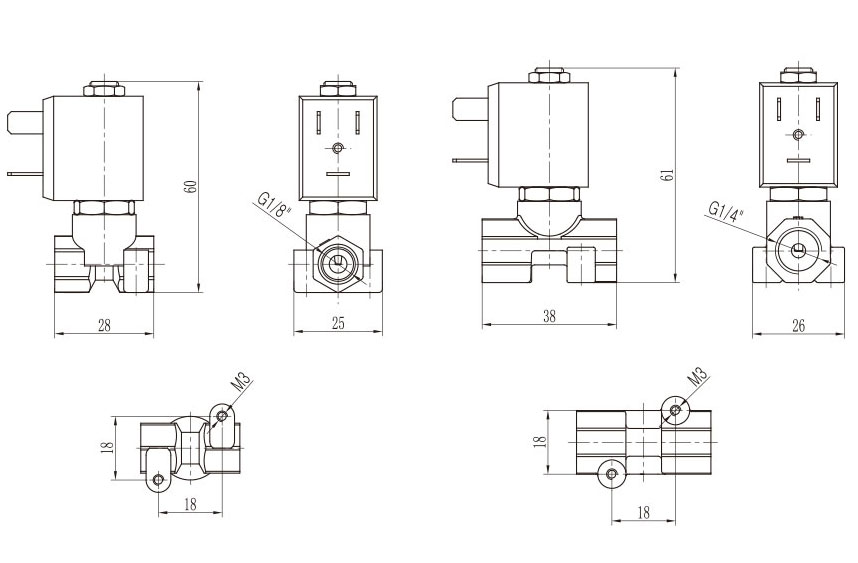

  • Product structure







Pipe Size G







Orifice mm





CV

rate



Pressure（bar）

Coil Type



Power





Externsions Dimensions L×W×H





Weight

KG





Model Code

220VAC 50/60HZ







To confi gure



AC 220V



DC 24V

AC

DC

AC

DC





1/8”

1.0

0.05

0-20

0-15

0-20

0-15

D

6

6

28×25×60

0.13

AC13DA20N310101

1.5

0.07

0-16

0-13

0-16

0-13

D

12

12

28×25×60

0.13

AC13DA20N3101R2

2.0

0.13

0-13

0-10

0-13

0-10

D

12

12

28×25×60

0.13

AC13DA20N310102

2.5

0.17

0-10

0-6

0-10

0-6

D

12

12

28×25×60

0.13

AC13DA20N3101R3





1/4”

1.0

0.05

0-20

0-15

0-20

0-15

D

12

12

38×26×61

0.14

AC13DA20N310201

1.5

0.07

0-16

0-13

0-16

0-13

D

12

12

38×26×61

0.14

AC13DA20N3102R2

2.0

0.13

0-13

0-10

0-13

0-10

D

12

12

38×26×61

0.14

AC13DA20N310202

2.5

0.17

0-10

0-6

0-10

0-6

D

12

12

38×26×61

0.14

AC13DA20N3102R3


1

2

3

4

5

6

7

8



Ac13



Coil Types



Voltage



Seal Material



Body Material



Pipe Size

Orifice



Options

A

C

13

D

A20

N

31

01

01





A:

Direct Acting



C： Normally Closed



13:

Series





D=Din Standard Connections, Fully Encapsulated



A24=AC24V A36=AC36V A48=AC48V A10=AC110V A20=AC220V D12=DC12V D24=DC24V D36=DC36V



N=NBR V=VITON E=EPDM



31=Forged

Brass

32=304



01=1/8''

02=1/4''



01=1.0

02=2.0

R2=1.5 R3=2.5



N=NPT

Other threads can be customized
