2/2 way Direct Acting solenoid valve

1、2/2-way Plate Direct Acting、Open when energized，closed when de-energized
2、Automatic control of neutral gases and liquids
3、Small volume, large flow, simple structure

4、It can be mounted on the valve plate and controlled

Separately for each luck
Control

Control：Direct Acting
Body Material：Brass、Stainless steel 304(316 can be customized)
Maximum Pressure Resistance：38bar Maximum
Work Pressure：0~25bar
Ambient Temperature：0 ~65
Installation: mounted on the valve plate, which can be combined into multiple controls
Standard Voltage：AC：220V/50HZ 240/60HZ，
AC110V,DC24V, 12V……
Voltage fluctuations：+10%~-10% Medium：neutral gases and liquids
Protection Level：IP65 100%ED Medium Temperature： NBR ( -10~+80 )

Down PDF

Model specification

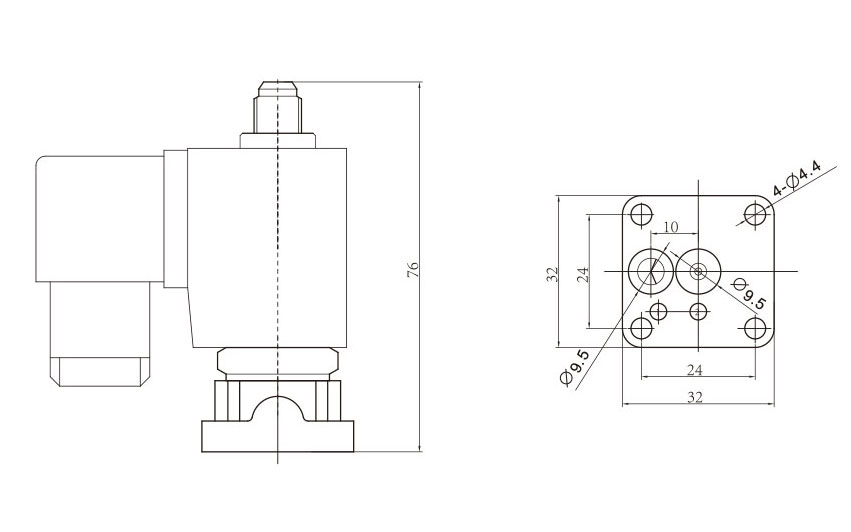

Product structure

Pipe Size G	Orifice mm	CV rate	Pressure（bar）				Coil Type	Power		Externsions Dimensions L×W×H	Weight KG	Model Code 220VAC 50/60HZ
							To confi gure	AC 220V	DC 24V
			AC	DC	AC	DC	To confi gure	AC 220V	DC 24V
Integrated mounting on valve plate	1.2	0.05	0-25	0-25	0-25	0-25	D	22	13	32×32×76	0.31	AC14DA20N3111R1
	1.5	0.07	0-20	0-20	0-20	0-20	D	22	13	32×32×76	0.31	AC14DA20N3111R2
	2.0	0.14	0-15	0-15	0-15	0-15	D	22	13	32×32×76	0.31	AC14DA20N311102
	2.5	0.21	0-10	0-10	0-10	0-10	D	22	13	32×32×76	0.31	AC14DA20N3111R3

1			2	3	4	5	6	7	8
Ac14			Coil Types	Voltage	Seal Material	Body Material	Pipe Size	Orifice	Options
A	C	14	D	A20	N	31	11	01
A: Direct Acting	C： Normally Closed	14: Series	D=Din Standard Connections, Fully Encapsulated N=Lead Wires, Water-light, Fully Encapsulated	A24=AC24V A36=AC36V A48=AC48V A10=AC110V A20=AC220V D12=DC12V	N=NBR V=VITON E=EPDM	31=Forged Brass	11=Plate integration	R1=1.2 R2=1.5 02=2.0 R3=2.5	L=Neon Lamp J=External cooling module D=Timer
			M=Low Power	D24=DC24V D36=DC36V		31=Forged Brass
